Specification
Name:
Infrared Laser Detection & Alignment Card
Item:SL-IR-A

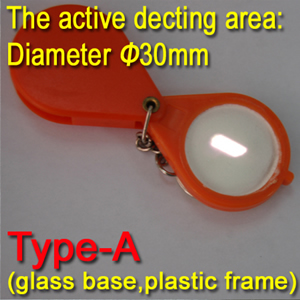

Size:the active detecting area is the white space with diameter 30mm
Function: The substrate is made of glass, the frame is made of plastic.
The active detecting area can be coverd with the frame when it not be used.
Its superior performance can endure high-power laser, can be used in
scientific research and industry.
Wavelength:
800～1600 nm
Usually:808nm 850nm 904nm 980nm 1064nm
The minimum power: 100mw, even if the TV remote controller's IR LED can make the card display.
The maximum power：
what the card can endure, be equal to Precision Alumina Ceramic (Alumina 95%). High-power laser can make the card display bright green.
Applications:
1. IR upconversion material card for
YAG / Fiber laser equipment testing
2.
IR upconversion material card for
IR lasers / LD / LED testing
|
