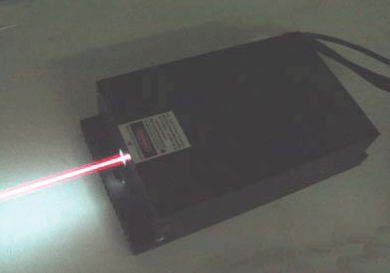

Subminiature RGB laser, compact laser modules in it

Specifications

Model

SL-RGB-C-XXX

Output Power @ 25 ≧

532nm green laser module output power:10-100mw

405nm or 450nm blue laser module output power:10-200mw

650nm or 635nm red laser module output power:10-100mw

RGB laser output power:532nm+405nm(450nm)+650nm(635nm)

Wavelength

 Red at 650nm or 635nm, Green at 532nm, Blue at 405nm or 450nm

Operation Mode

CW,TEM00/TE00/TE00
Warm-up time (minutes)
<15
Beam Divergence (1/e2, Full Angle)
< 5mrad
Beam diameter at the aperture (mm)
<6
Operating temperature
10≧゛35≧
Input Voltage 80-260VAC
Modulation
NO
Switches
3pcs on/off switches with led lamps
Dimension Can provide customized dimension according to client requirement
Box portable
Expected Operating Lifetime >10000 hours
Warranty time one year
