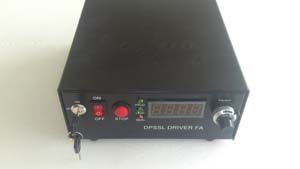

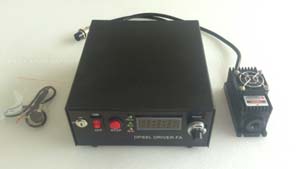

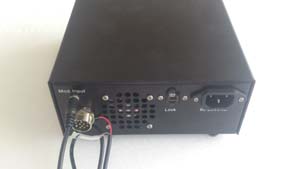

396nm 1-100mW Diode Laser

Specifications

Model

SL-396nm-XXXmW

Output Power @ 25 ¡æ

1-100mW

(5mW,10mW,20mW ,30mW,50 and 100mW is optional)

Wavelength

396nm¡À5nm
Transverse mode Near TEM00
Operation Mode CW

Power stability (rms, over 4 hours)

<5%
Warm-up time (minutes)
<5
M2 factor
<2.0
Beam Divergence (1/e2, Full Angle)
< 1.5mrad
Beam diameter at the aperture (mm) <2.5
Polarization ratio
 >50:1
Pointing stability after warm-up (mrad)
<0.05
Operating temperature 10¡æ¡«35¡æ
Input Voltage 80-265VAC
Modulation TTL Modulation or Analog Modulation
Expected Operating Lifetime  >10000 hours
Warranty time One year

¡¡
