Fiber Coupled
Laser modules and Laser
System |
 |
|
 |
|

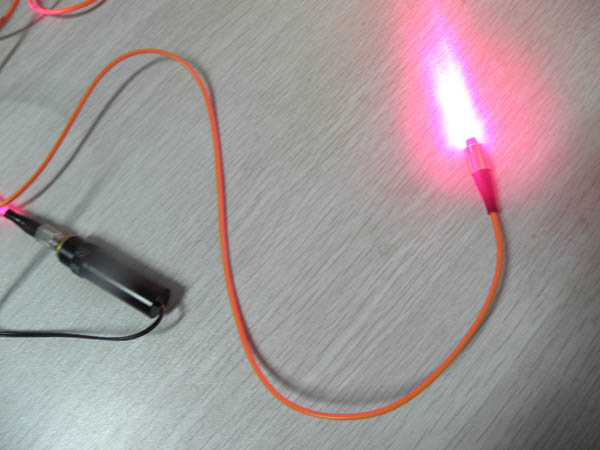

635nm
Red Laser Module with Fiber Coupling |
|

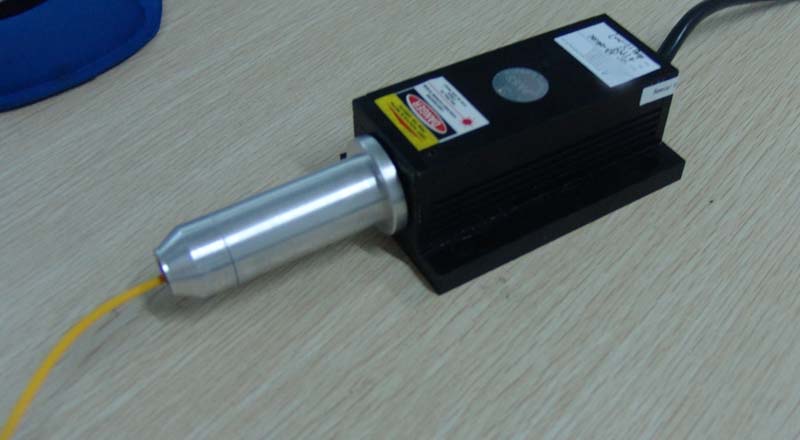

6405nm
Red Laser Module with Fiber Coupling |
 |
|
 |
|

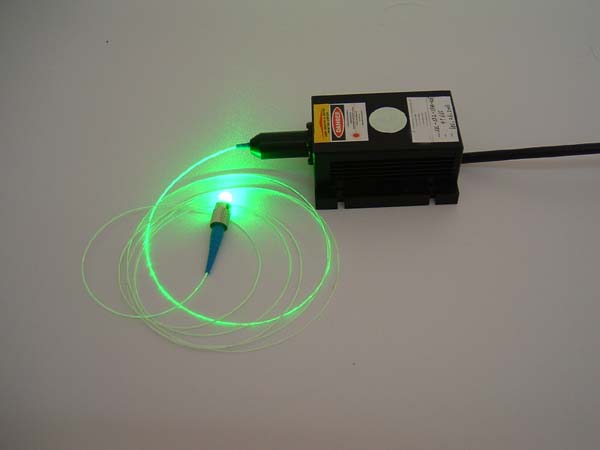

532nm Green Laser Set with Fiber Coupling
|
|
635nm Red Laser
Set with Fiber Coupling
|
|
 |
 |
|
473nm
Blue Laser Set with Fiber Coupling
|
|

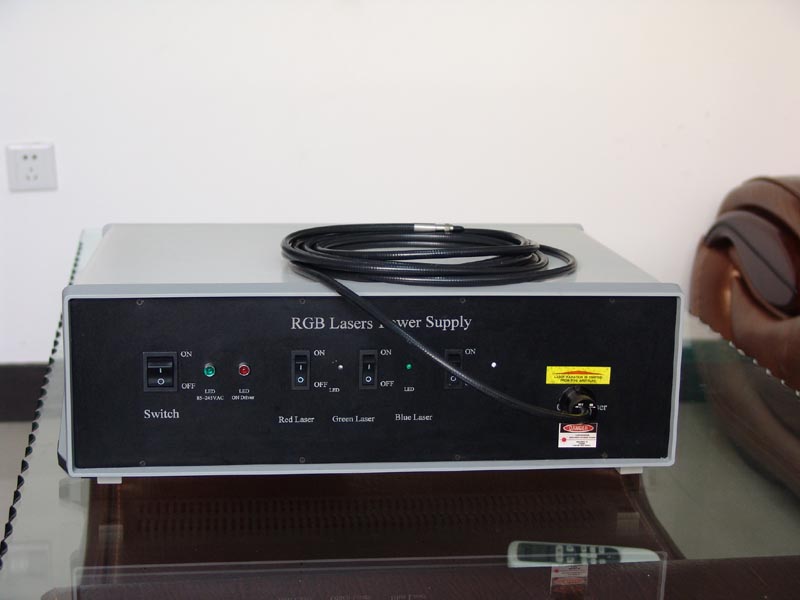

RGB
Laser System With Fiber Coupling |
|
|
|
SailLaser
all laser
modules can be fiber coupled as you
require. You also have to refer to the detailed specs of
the laser modules or laser set (such as power, stability, noise, size,
etc) to decide which laser you choose for fiber coupling. |
|
|
|
Fiber Coupled Efficiency(Connector:
SMA905 or FC): |
|
Wavelength
(nm) |
Single Mode
fiber
Core
Diameter: 4-9 µm |
Multi-mode fiber
Core
Diameter: −100 µm |
Multi-mode fiber
Core
Diameter:
−200 µm |
Multi-mode fiber
Core
Diameter: −400 µm |
|
375nm |
>10% |
>30% |
>50% |
>70% |
|
405nm |
>10% |
>30% |
>50% |
>70% |
|
450nm |
>10% |
>30% |
>50% |
>70% |
|
473nm |
>14% |
>45% |
>70% |
>80% |
|
532nm |
>14% |
>45% |
>70% |
>80% |
|
593nm |
>12% |
>40% |
>60% |
>70% |
|
635nm |
>10% |
>30% |
>50% |
>70% |
|
650nm |
>10% |
>30% |
>50% |
>70% |
|
660nm |
>10% |
>30% |
>50% |
>70% |
|
671nm |
>14% |
>45% |
>70% |
>80% |
|
808nm |
>10% |
>30% |
>50% |
>70% |
|
850nm |
>10% |
>30% |
>50% |
>70% |
|
980nm |
>10% |
>30% |
>50% |
>70% |
|
1064nm |
>14% |
>45% |
>70% |
>80% |
Please note:
The
Customer can inform the fiber requirements (such as fiber
core diameter, fiber length, fiber connector, etc) in
details. |
