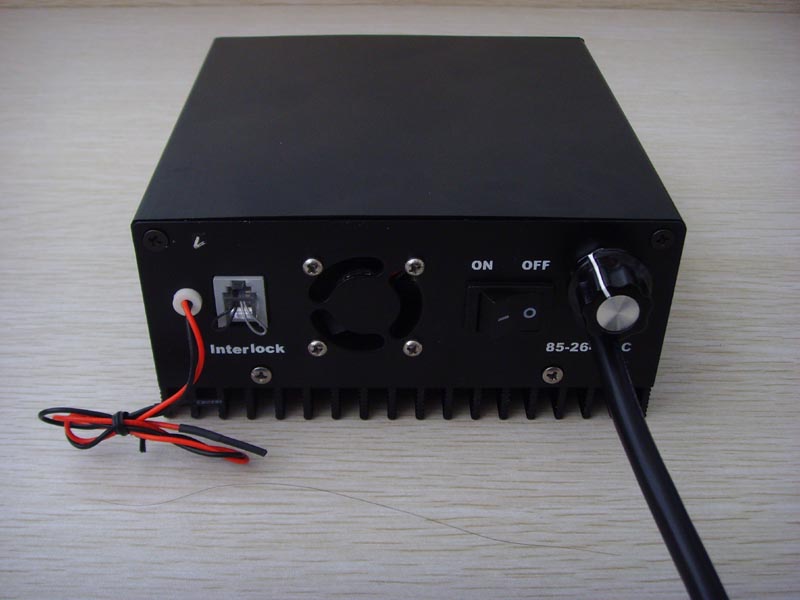

685nm
1-20mW Laser
|
|
 |
 |
|
Specifications
|
|
Model
|
SL-685nm-XXT
|
|
Output
Power @ 25 ¡æ
|
1-20mW
|
|
Wavelength
|
685nm¡À5nm
|
|
Operation
Mode
|
CW
|
|
Transverse mode
|
TEM00
|
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
|
Warm-up time (minutes)
|
<10 |
|
M2 factor
|
<2.0 |
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter at the aperture
(mm)
|
<4.0
|
|
Polarization ratio |
>50:1 |
|
Point stability after warm-up (mrad)
|
<0.05 |
|
Operating temperature
|
10¡æ¡«35¡æ
|
|
Modulation
|
TTL Modulation or Analog Modulation
|
|
Input Voltage
|
85-265VAC or 5VDC |
|
Expected
Operating Lifetime
|
|
|
Warranty Time |
1 year
|
