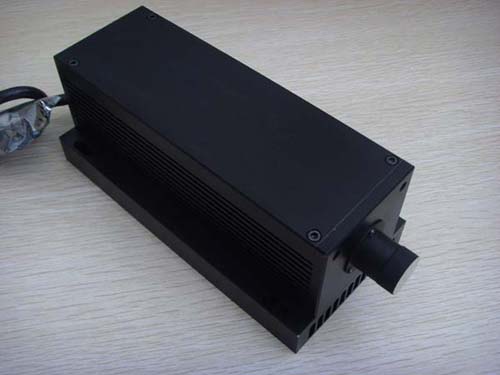

561nm 1-100mW DPSS Single Longitudinal Mode
Laser |
|
|
|
|
Specifications
|
|
Model
|
SL-561nm-SLM-XXX
|
|
Output
Power @ 25 ≧
|
1-100mW
|
|
Wavelength
|
561nm＼1nm
|
|
Operation
Mode
|
CW
|
|
Transverse mode |
TEM00 |
|
Longitudinal mode |
Single |
|
Power stability
(rms, over 2 hours)
|
<5%
|
|
Warm-up time
(minutes)
|
<15
|
|
M2 factor
|
<1.5
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 2.0mrad
|
|
Beam diameter
at the aperture (mm)
|
<2.0
|
|
Polarization ratio
|
>100:1(0 or 90 degree)
|
|
Spectral linewidth (nm) |
<0.0001 |
|
Coherent length (m) |
>50 |
|
Noise of amplitude (pk-pk,
1~20MHz) |
<0.5% |
|
Pointing stability after warm-up (mrad) |
<0.05 |
|
Operating temperature
|
|
|
Input Voltage
|
80-260VAC
|
|
Modulation
|
None
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
one year
|
