DPSS 671nm Single Longitude
Mode Red Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-671nm-SLM-XXXT
|
|
Output
Power @ 25 ≧
|
1-400mW
|
|
Wavelength
|
671nm
|
|
Operation
Mode
|
CW
|
|
Transverse mode |
TEM00 |
|
Longitudinal mode |
Single
Longitude Mode |
|
Warm-up time
(minutes)
|
<15
|
|
Power stability
(rms, over 4 hours)
|
<5% |
|
M2 factor |
<1.2 |
|
Beam diameter at the aperture
(mm) |
2.0mm |
|
Beam divergence, full angle
(mrad)
|
<1.5
|
|
Noise of amplitude (pk-pk,
1~20MHz) |
<0.5% |
|
Coherent Length (m)
|
>50m
|
|
Spectra Linewidth(nm) |
<0.0001 |
|
Polarization
ratio
|
>100:1
|
|
Point stability after warm-up (mrad)
|
<0.05
|
|
Operating
temperature
|
10≧゛35≧
|
|

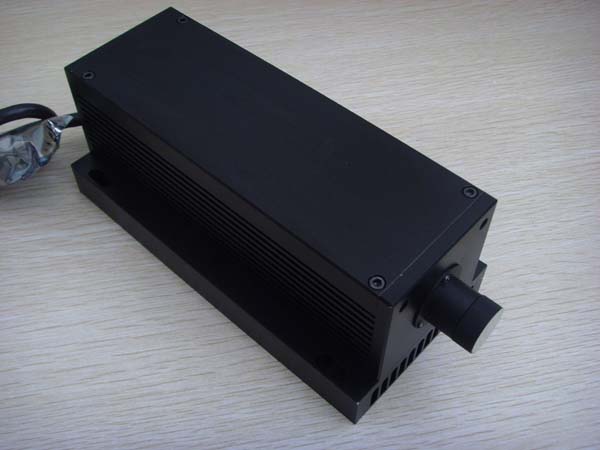

Dimensions of
Laser head (mm)
|
212 〜 88 〜 74mm
|
|

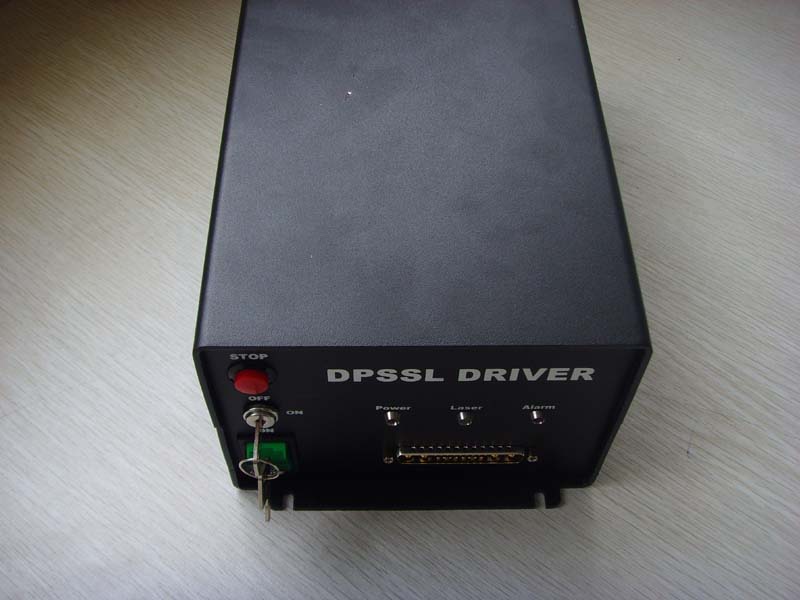

Dimensions of
power supply
|
238 x 146 x
94mm
|
|
Modulation |
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
One year
|
