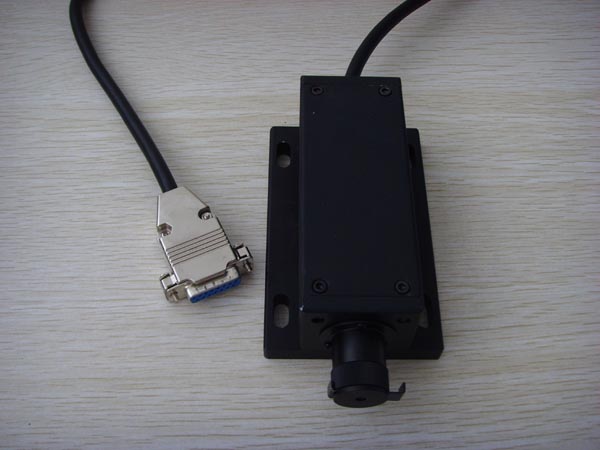

DPSS 501nm Laser



Specifications

Model

SL-501nm-5T

Output Power @ 25

1-5mW

Wavelength

501nm1nm

Operation Mode

CW,TEM00

Power stability (rms, over 4 hours)
<10%
Warm-up time (minutes)
<5
M2 factor
<1.2
Beam Divergence (1/e2, Full Angle)
< 1.5mrad
Beam diameter at the aperture (mm)
<2.0
Polarization ratio
>50:1
Operating temperature
10桫30
Input Voltage
80-260VAC
Modulation
TTL Modulation or Analog Modulation
Expected Operating Lifetime
>10000 hours
Warranty time
one year
