DPSS 491nm
1-10mW Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-491nm-xxT
|
|
Output
Power @ 25 ≧
|
1-10mW
|
|
Wavelength
|
491nm＼1nm
|
|
Operation
Mode
|
CW
|
|
Transverse mode |
TEM00 |
|
Power stability
(rms, over 4 hours)
|
<5%
|
|
Warm-up time (minutes)
|
<15 |
|
M2 factor
|
<1.2
|
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter at the aperture
(mm)
|
<2.0
|
|
Beam height from base plate
(mm)
|
29
|
|
Polarization ratio
|
>100:1
|
|
Pointing stability after
warm-up (mrad)
|
<0.05
|
|
Operating temperature
|
10≧゛30≧
|
|
Input Voltage
|
80-260VAC or 5VDC
|
|
Modulation
|
TTL Modulation or Analog Modulation
|
|

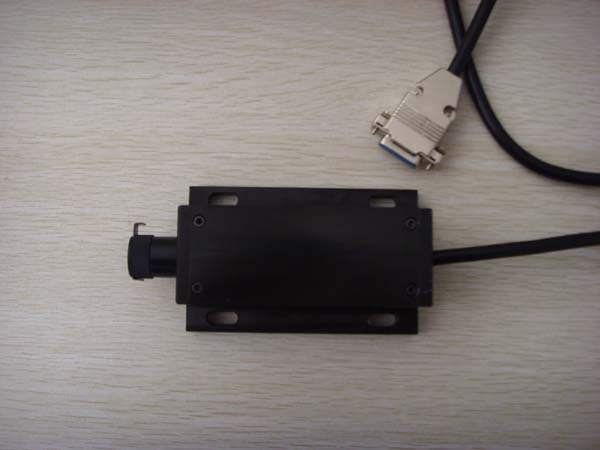

Dimensions of Laser head (mm) |
156 x
78 x 60mm
|
|

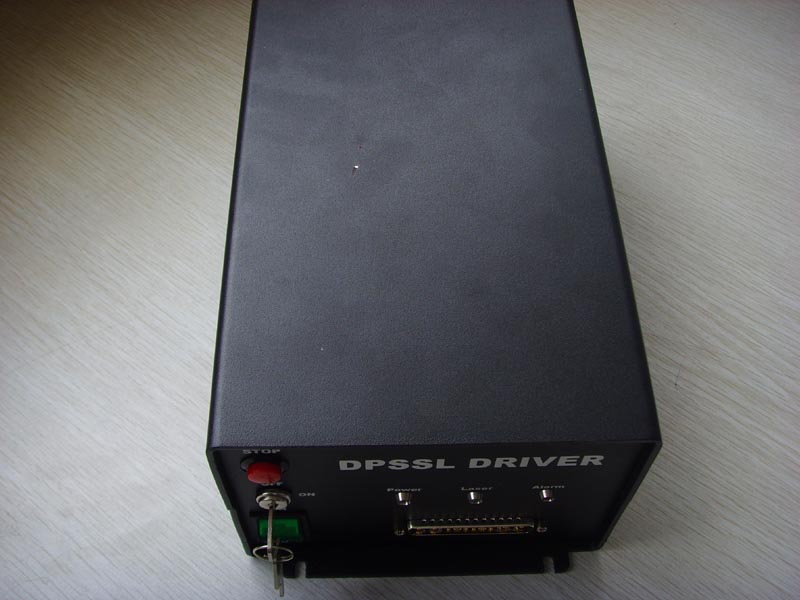

Dimensions of power supply
(mm) |
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
One year |
