435nm 1-10mW DPSS Blue Violet
Laser
|
|
|
|
Specifications |
|
Model |
SL-435nm-xT |
|
Wavelength |
435nm＼5nm |
|
Output power |
1-50mw |
|
Operating Mode |
CW |
|
Transverse Mode |
TEM00 |
|
Power stability (rms, over 4 hours)
|
<10%, <5% or <3% |
|
Warm-up time (minutes)
|
<15 |
|
M² Factor |
<1.2 |
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter at the aperture
(mm)
|
<2.0 |
|
Polarization ratio |
>100:1 |
|
Beam height from base plate (mm) |
24.8 |
|
Pointing stability after
warm-up (mrad) |
<0.05 |
|

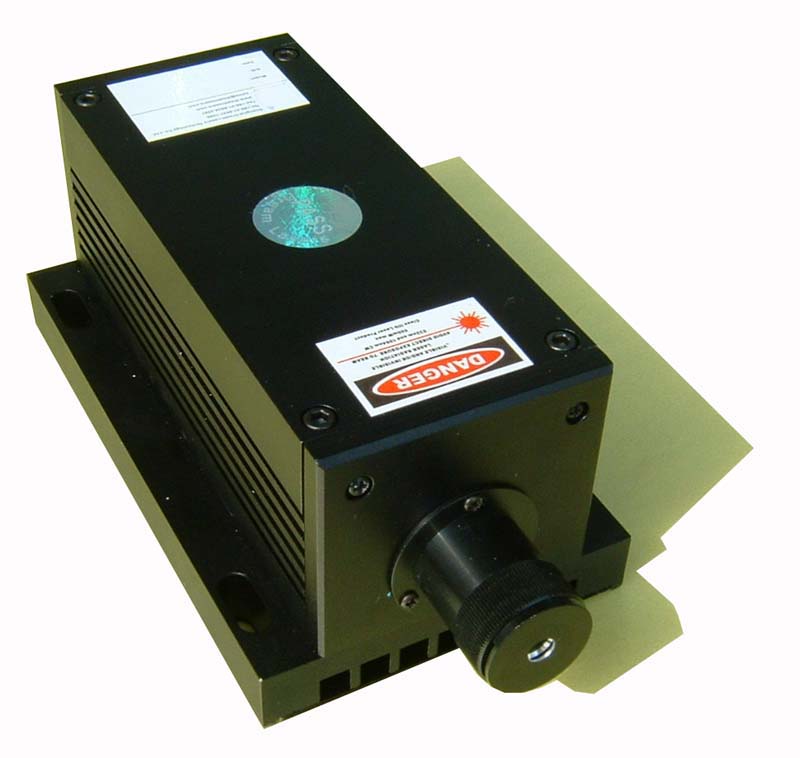

Laser Head Dimensions (mm)
|
147 x
74 x
47mm |
|

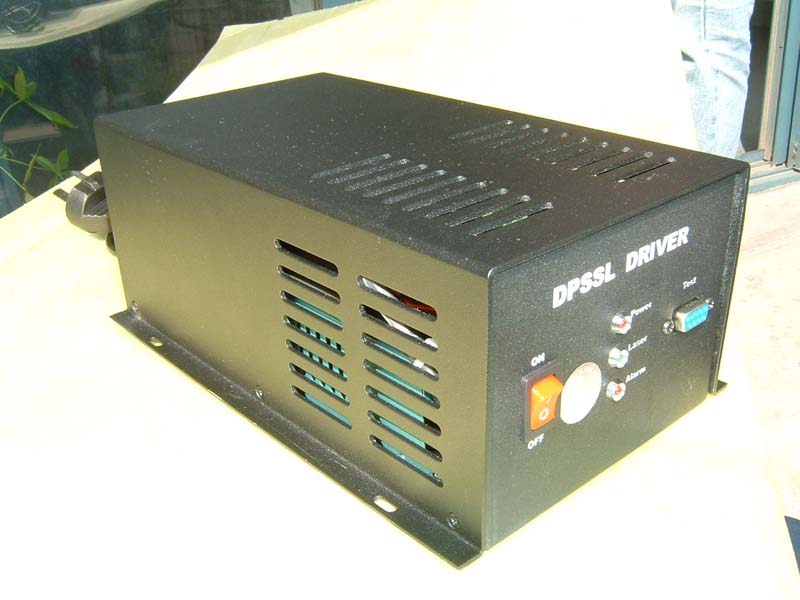

Power Supply Dimensions (mm) |
136 x 130
x 62mm |
|
Working Voltage (VAC)
|
90-265VAC or 5VDC |
|
Modulation |
TTL or Analog Modulation
|
|
Cooling
|
TEC |
|
Operating temperature
|
10≧゛30≧
|
|
Expected Lifetime (hours)
|
>10000Hours |
|
Warranty time |
One year |
