1560nm Femtosecond Pulse Fiber Laser





Our E-fiber series ultra fast laser integrates the latest femtosecond laser technology, uses the high performance rare earth fiber as the working medium, combines the high precision dispersion compensation technology and the active servo system, realizes the stable output of the 1560nm femtosecond pulse laser. A single-click boot, long-term stable operation and maintenance-free, with laser pulse extremely narrow, pulse peak power and other characteristics, widely used in optical frequency comb, supercontinuum spectrum, THz and other fields.

*accept customized parameters such as pulse width, power, repetition rate, etc.

Characteristics

Apply
Min. 50fs pulse width Optical frequency comb
Self-starting and Maintenance-free Supercontinuum
Stable Power THz wave
1560nm Ultrafast laser phenomenon
Model: SL-FSPL-1560nm-xx fs-xxx mW-xx MHz
Optical Specifications Unit Typ. Remarks
Wavelength nm 1560\10nm
Spectrum width nm 20 60
Pulse width fs 50/100/200/500 optional
Output power mW 1-120 Optional
Power stability -

1%


Repeat frequency rate MHz

80

Optional
Repeat frequency rate stability Hz <100 Optional
Fiber connector mode - FC/APC
Single pulse energy nJ >1
State of polarization - linear polarization
Fiber - PM0.5 PM2
Fiber connector - FC/APC,Slow alignment slot
warm-up time min <1


Electrical and environmental Specifications
Package type desk module Remarks
control mode  push-button  push-button
Synchronous Electrical Signal Interface SMA SMA
Power supply
100~240VAC, <30W
5VDC, <20W

Size 260(W)〜280(D)〜120(H) 220(W)〜120(D)〜55(H)
Operating temperature

5 ~ 45<C


Working humidity
0~70%

Warranty time

One year



Pulse AC Profile

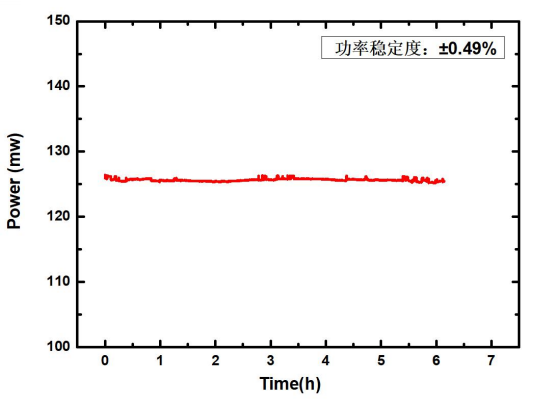

Power stability

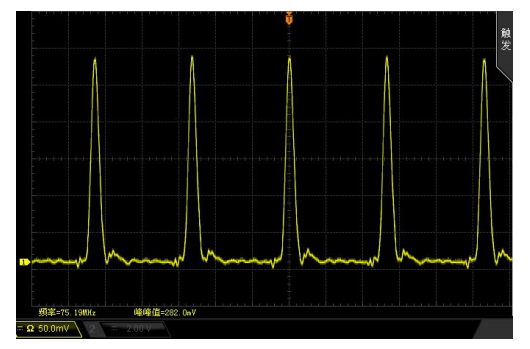

Pulse sequence

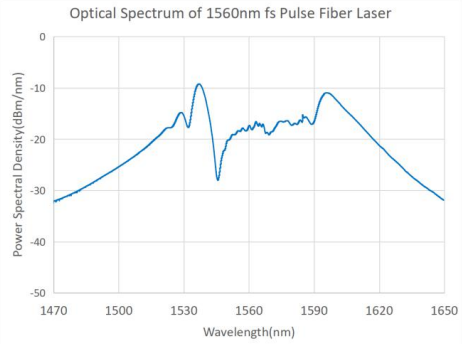

Optical spectrum
Order information/model
Model Wavelength Pulse width(fs) Output power(mW) Repeat frequency rate(MHz) Out Fiber Package
SL-FSPL- 1560nm 50/100/200/500
10/50/100
80/100
SM=Single Fiber

PM=PM Fiber

D=desk type

M=module
