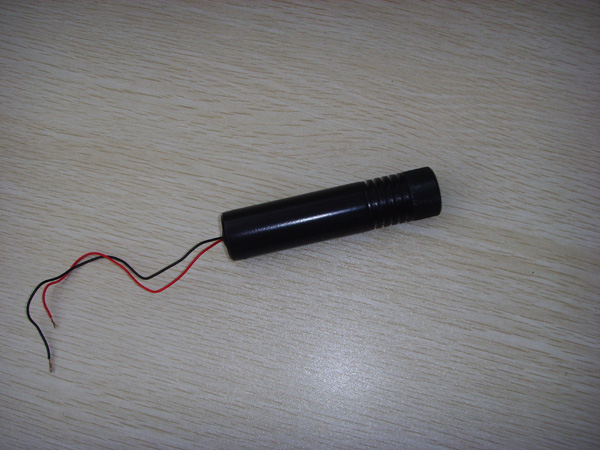

850nm 1-300mW Infrared Diode Laser Compact Module

Specifications

Model

SL-850nm-LM-xxx mW

Wavelength (nm) 850nm±5nm
Output Power 1-300mw

5mW,10mW,20mW,30mW,50mW,80mW,100mW,120mW,150mW, 200mW,250mW and 300mWcan be selected)

Operation Mode

CW

Transverse Mode Near TEM00
Warm-up time (minutes)
< 5
Divergence 1.5mard
Beam diameter  at the aperture (mm) <2mm
Operating Voltage DC=3V or 5V
Operating Current <100mA
Storage Temperature -40℃~+80℃
Operating Temperature -10℃~+40℃
Dimension (mm)
Dia.18 x 70mm(or according to your requirement)
Warranty time One year
