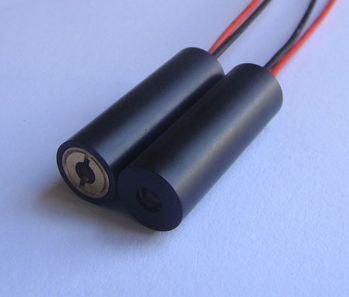

785nm 1-100mW Diode Laser Compact Module

　

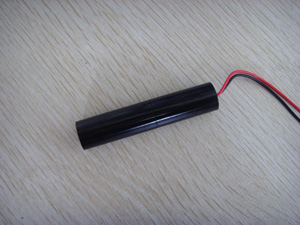

785nm 1-100mW Diode Laser Compact Module



Specifications

Model

SL-785nm-LM-XXX

Output Power @ 25 ℃

1-100mW((5mW,10mW,20mW,50mW and 80mW can be selected))

Wavelength

785nm±10nm

Operation Mode

CW
Transverse Mode Near TE00
Power stability (rms, over 4 hours) <10%
Warm-up time (minutes)
< 2
M2 factor
<2.0
Beam Divergence (1/e2, Full Angle)
< 1.5mrad
Beam diameter at the aperture (mm)
 <2.0
Operating temperature (℃)
10～35
Input Voltage (VDC)
2.3-2.7VDC
Dimension (mm)
Dia.18x38mm(or according to your requirement)
Expected Operating Lifetime
>8000 hours
Warranty time
one year
