1560nm High-power Femtosecond Pulse Fiber Laser



Our E-Fiber series high-power ultra-fast lasers integrate the latest femtosecond laser technology, using high-performance rare earth fibers as industrial tools.

As a medium, combined with high precision dispersion compensation technology and active servo control system ,1.5μm femtosecond pulse with average power of 1 watt is realized

Laser stable output. With the characteristics of extremely narrow laser pulse, high pulse peak optical power,widely used in optical frequency comb, supercontinuum spectrum, terahertz THz and other fields.

*accept customized parameters such as pulse width, power, repetition rate, etc.

Characteristics

Apply
100fs pulse width Optical frequency comb
Self-starting and Maintenance-free Supercontinuum
Stable Power THz wave
Output power 1W Ultrafast laser phenomenon
Model: SL-FSPL-1560nm-120fs-1000mW-xx MHz
Optical Specifications Unit Typ. Remarks
Wavelength nm 1560\10nm
Pulse width fs <120 optional
Output power mW 1000 Optional
Power stability - 1%
Repeat frequency rate MHz

80-100


Single pulse energy nJ

>10

Optional
Polarization - linear polarization,
DOP>20dB
Vertical
Output Mode - Space light
M2 factor - <1.2
Beam Divergence   mard <1.5
Beam diameter
mm <1.6

Electrical and environmental Specifications
  Unit Typ. Remarks
Synchronous Electrical Signal Interface - SMA
Warm-up time minutes <1
Power supply

110~240VAC
<40W
Size mm 330(W)〜340(D)〜112(H)
Operating temperature

     <C

                     5 ~ 45
Working humidity
  -
                      0~70%
Warranty time

  -

                   One year

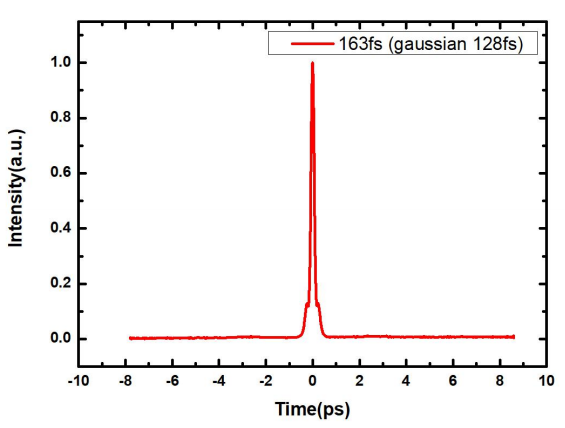

Pulse AC Profile

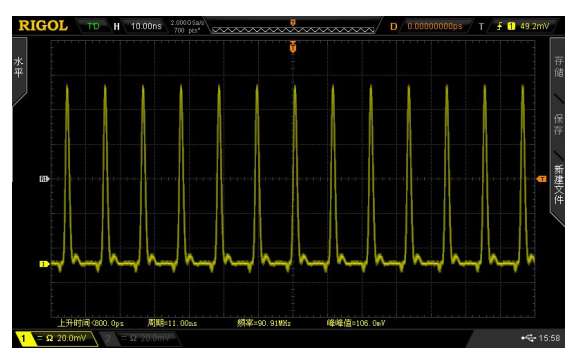

Pulse sequence

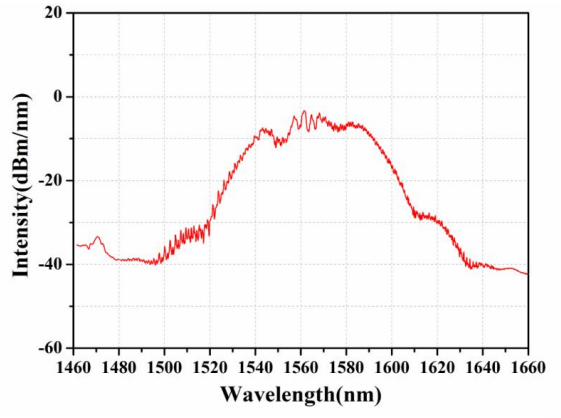

Spectrum(dBm/nm)
Spectrum(mW/nm)
Order information/model
Model Wavelength Pulse width(fs) Output power(mW) Repeat frequency rate(MHz) Out Fiber Package
SL-FSPL- 1560nm 120
1000
80/100
FS=Free sight B=desk type
