351nm Air-Cooled Q-switched 0.5-2.5mJ
Laser at 10Hz Pulse repetition rate
|
|
Specifications
|
|
Model |
Q1-B10 |
Q1-C10 |
Q1-D10 |
Q1-E10 |
|
Wavelength |
1053 or 1064nm |
1064nm |
1053nm |
|
Pulse repetition rate |
Single-shot to 10Hz |
|
Pulse duration |
<8ns |
<7ns |
|
Pulse energy (mJ) |
|
|
|
|
|
1053 / 1064nm |
10 |
20 |
35 |
45 |
|
526.5 / 532nm |
5 |
10 |
17 |
22 |
|
351 / 355nm |
3 |
6 |
10 |
13 |
|
263 / 266nm |
1.5 |
3 |
5 |
7 |
|
211 / 213nm |
0.5 |
1 |
2 |
2.5 |
|
Jitter |
<0.5 ns RMS |
|
Pulse-pulse energy
Stability |
<5% rms |
|
Power drift |
＼ 3% |
|
Beam
profile |
Bell-shaped,>75% fit to
Gaussian |
|
Beam divergence (mrad) |
<1.0 |
|
Point stability (urad) |
<10 |
|
Polarization |
Linear,horizontal |
|
Typical beam diameter (mm) |
1.7 |
2.5 |
3.5 |
|
Transmission range |
0.5-95% |
|
Cooling |
Air cooled |
|
Operating temperature (ºC) |
15-30 |
|
Mains voltage |
90-230VAC,single phase,47-63Hz |
|
Laser head dimensions (WxLxH)
|
110 x 231 x 112mm |
|
Controller unit
dimensions (WxLxH) |
108 x 192 x 59mm |
|
Power adapter
dimensions
(WxLxH) |
50 x 125 x 31mm |
|
Harmonic generator dimensions
(WxLxH) |
110 x 242 x 112mm |
|
Expected Lifetime (hours)
|
>10000 |
|
Warranty time |
one year |
|

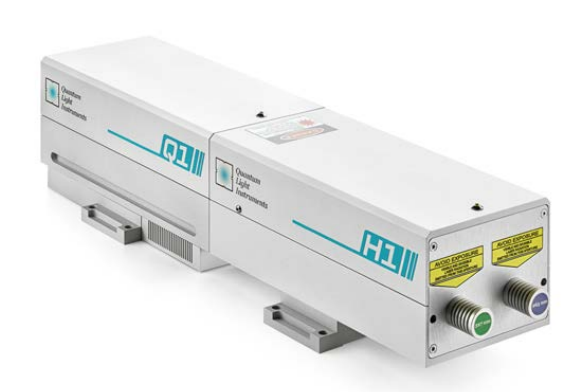

1053nm Q1 with attached harmonic
generator module H1 |
