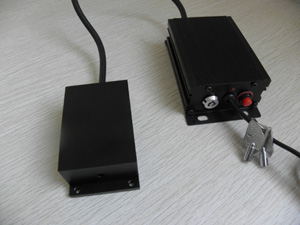

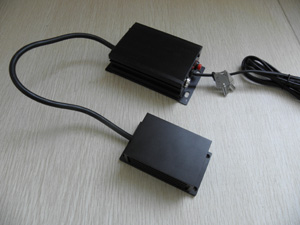

375nm 1-150mW Diode Laser

Specifications
Model	SL-375nm-XXmW
Output Power @ 25 ℃	1-150mW (5,,20,30,50,100 and 150mW is optional)
Wavelength	375nm±5nm
Transverse mode	Near TEM₀₀
Operation Mode	CW
Power stability (rms, over 4 hours)	<5%
Warm-up time (minutes)	<5
M² factor	<2.0
Beam Divergence (1/e², Full Angle)	< 2.0mrad
Beam diameter at the aperture (mm)	<2.0
Polarization ratio	>50:1
Pointing stability after warm-up (mrad)	<0.05
Operating temperature	10℃～35℃
Input Voltage	80-265VAC
Modulation	TTL Modulation or Analog Modulation
Expected Operating Lifetime	>10000 hours
Warranty time	One year

　
