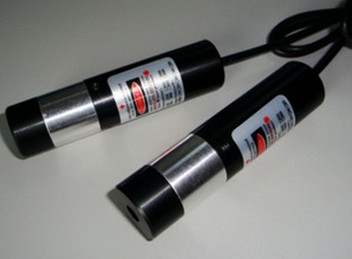

405nm 10-300mw Compact Laser Module With Adjustable Focus
|
|
 |
|
Specifications
|
|
Model
|
SL-405nm-LM-F-xxxmW
|
|
Output
Power @ 25 ≧
|
5-300mW
|
|
Wavelength
|
405nm
|
|
Beam
Mode
|
Dot,
Adjustable Focus
|
|
Operation
Mode |
CW |
|
Transverse Mode |
TEM00 |
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
|
Warm-up time
(minutes)
|
<1
|
|
M2 factor
|
<1.2
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter
at the aperture (mm)
|
<2
|
|
Operating
temperature
|
15≧゛30≧
|
|
Dimensions
|
Dia.20〜80mm
(Can be designed to other
size according to customer's requirement)
|
|
Input Voltage
|
5VDC
|
|
Expected
Operating Lifetime
|
>5000 hours
|
|
Warranty time |
One year |
