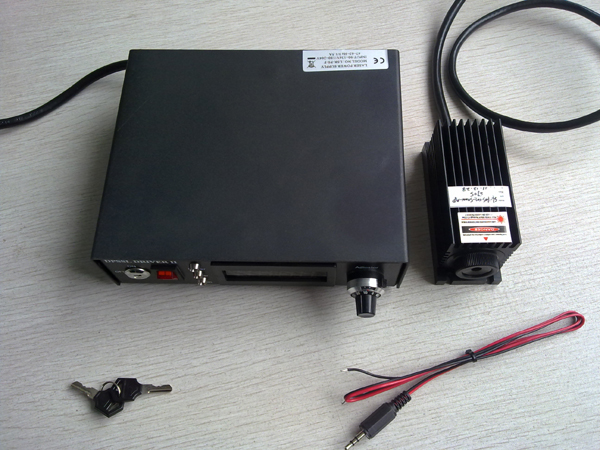

405nm 10-300mw Laser Set with Adjustable Power
|
|
 |
 |
|
Specifications
|
|
Model
|
SL-405nm-AP-XXXT
|
|
Output
Power @ 25 ≧
|
0-300
Adjustable Power
|
|
Wavelength
|
405nm
|
|
Operation
Mode
|
CW
|
|
Transverse mode |
TEM00 |
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
|
Beam diameter at the aperture
(mm)
|
<2.0
|
|
Linear Polarization |
90:1 |
|
Ellipticity of Beam |
>95% |
|
Warm-up time (minutes)
|
<5
|
|
Point stability after warm-up (mrad)
|
<0.05
|
|
Beam Divergence (1/e2, Full Angle)
|
< 1.2mrad
|
|
Beam diameter at the aperture
(mm)
|
<2.0
|
|
Operating temperature
|
10≧゛35≧
|
|

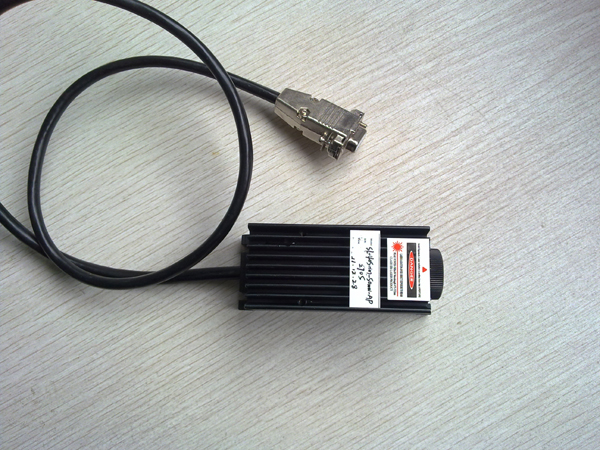

Dimensions of Laser Head |
100x34x45mm
|
|
Dimensions of Power Supply |
134x130x72mm |
|
Modulation |
0-30kHz |
|
Input Voltage
|
85-265VAC
|
|
Expected
Operating Lifetime
|
>10000 hours
|
|
Warranty Time |
1 year
|
|
|
|
