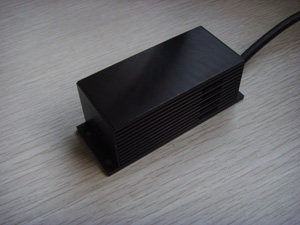

450nm 100-4000mW Diode Laser

Specifications

Model

SL-450nm-XXXXT

Output Power @ 25 ¡æ

100-4000mW

(100mW,200mW,300mW,500mW,800mW and 1000mW,2000mW,3000mW and 4000mW optional)

Wavelength

450nm¡À5nm

Operation Mode

CW
Transverse Mode Near TEM00
Warm-up time (minutes)
<10
Power stability (rms, over 4 hours)
<5%
Beam Divergence (1/e2, Full Angle)
< 1.5mrad
Beam diameter at the aperture (mm)
< 8.0
Operating temperature(¡æ)
10¡«35¡æ
Input Voltage (VAC)
80-260 / 50-60Hz
Cooling TEC
Size of Laser Head (mm) 100 x 35 x 45
Size of Power Supply (mm) 180 x 148 x 56
Modulation TTL Modulation or Analog Modulation
Expected Operating Lifetime
>10000 hours
Warranty time
One year
¡¡

¡¡
