450nm 10-1000mw Laser Set with 12VDC
Power Supply
|
|
 |
|
Specifications
|
|
Model
|
SL-450nm-XXXT-12V
|
|
Output
Power @ 25 ≧
|
10-1000mW
|
|
Wavelength
|
450nm
|
|
Operation
Mode
|
CW,TEM00
|
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
|
Warm-up time (minutes)
|
<5
|
|
Point stability after warm-up (mrad)
|
<0.05
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.2mrad
|
|
Beam diameter
at the aperture (mm)
|
<2.0
|
|
Operating
temperature
|
10≧゛35≧
|
|

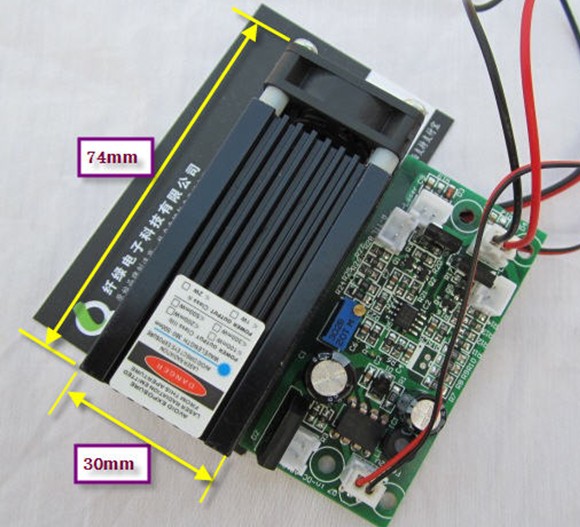

Dimensions (mm) |
74 x
30 x 30mm or
Dia.22x60
|
|
Input Voltage
|
12VDC
|
|
Expected
Operating Lifetime
|
>10000 hours
|
|
Warranty Time |
1 year
|
|
 |
 |
