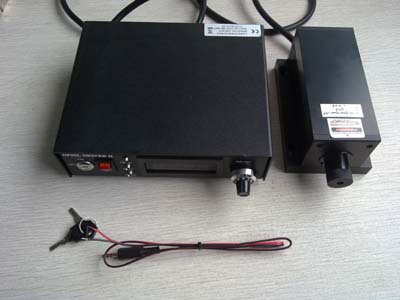

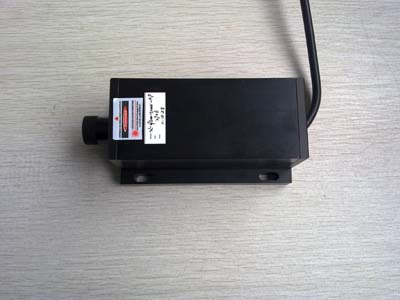

473nm 0-200mW Adjustable Power Laser Set
|
|
 |
 |
|
Specifications
|
|
Model
|
SL-473nm-XXXT-AP
|
|
Output
Power @ 25 ≧
|
0-100mW or
0-200mW
|
|
Wavelength
|
473nm
|
|
Operation
Mode
|
CW,TEM00
|
|
Power stability
(rms, over 2 hours)
|
<10%(over 2 hours)
|
|
Warm-up time
(minutes)
|
<15
|
|
M2 factor
|
<1.2
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter
at the aperture (mm)
|
<3
|
|
Operating
temperature
|
10≧゛35≧
|
|
Polarization
ratio
|
>100:1
|
|
Noise of
amplitude (rms)
|
~30%
|
|
Point stability
after warm-up (mrad)
|
<0.05
|
|
Input Voltage
|
80-260VAC / 5VDC
|
|
Dimensions of
Laser head (mm)
|
142
x 74 x 46 mm
|
|
Dimensions of
power supply
|
134 x 130 x
65mm
|
|
Modulation
|
TTL or Analog Modulation
|
|
Expected
Operating Lifetime
|
>10000 hours
|
|
Warranty time |
one year
|
