480nm

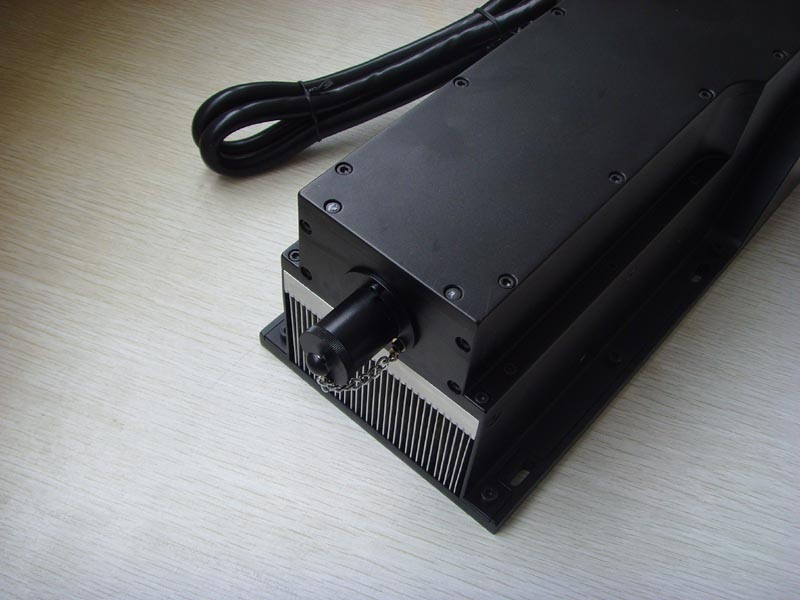

50-200mW Blue Laser
|
|
|
Specifications
|
Model
|
SL-480nm-XXXT
|
Output
Power @ 25 ≧
|
50-200mW
|
Wavelength
|
480nm\1nm
|
Operation
Mode
|
CW
|
Transverse mode
|
TEM00
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
Warm-up time (minutes)
|
<15 |
M2 factor
|
<3.0 |
Beam Divergence (1/e2, Full Angle)
|
< 2.0mrad
|
Beam diameter at the aperture
(mm)
|
<3.0
|
Noise of amplitude (rms,
1~20MHz) |
-30% |
Beam height from base plate
(mm) |
68.20 |
Point stability after
warm-up (mrad)
|
<0.05
|
Operating temperature
|
10≧゛35≧
|
Dimensions of
Laser head (mm)
|
202 x 90 x 94mm
|
Dimensions of
power supply
(mm) |
240 x 146 x
102mm
|
Modulation
|
TTL Modulation or Analog Modulation
|
Input Voltage
|
85-265VAC or 5VDC
|
Expected
Operating Lifetime
|
>10000 hours
|
Warranty Time |
1 year
|
