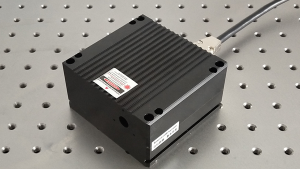

488nm 100-2000mW Diode Laser

Specifications

Model

SL-488nm-XXXXT

Output Power @ 25 ≧

100-2000mW

(100mW,200mW,300mW,500mW,800mW, 1500mW and 2000mW optional)

Wavelength

488nm＼5nm

Operation Mode

CW
Transverse Mode Near TEM00
Warm-up time (minutes)
<10
Power stability (rms, over 4 hours)
<5%
Beam Divergence (1/e2, Full Angle)
< 1.5mrad
Beam diameter at the aperture (mm)
< 6.0
Operating temperature(≧)
10゛35≧
Input Voltage (VAC)
80-260 / 50-60Hz
Cooling TEC
Size of Laser Head (mm) 98 x 92 x 50

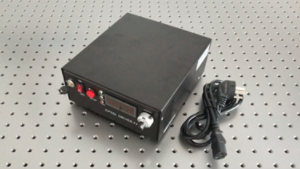

Size of Power Supply (mm) 180 x 198 x 85
Modulation TTL Modulation or Analog Modulation
Expected Operating Lifetime
>10000 hours
Warranty time
One year
　
　

　
