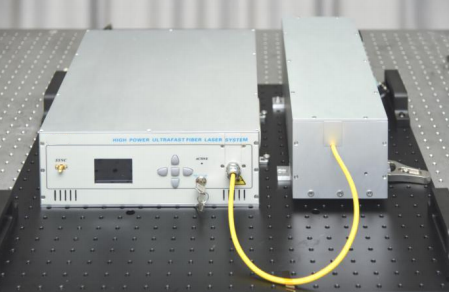

515nm Picosecond Pulse Fiber Laser





Our Y-fiber series ultra fast laser use high-performance rare earth fiber as working medium combined with full-maintenance mode-locking technology and frequency doubling technology to achieve 515/532nm band picosecond pulse laser stable output. Full self-starting and long-term stabilization,

It has the characteristics of narrow laser pulse and high peak optical power. This light source can be used for high power laser, supercontinuum spectrum, laser ranging, etc

*accept customized parameters such as pulse width, power, repetition rate, etc.

Characteristics

Apply
Picosecond fluorescence lifetime microscopy imaging
Self-starting and Maintenance-free OPA pump laser
Stable Power Seed laser
Polarization maintaining
Model: SL-PSPL-515nm-xx fs-xxx mW-xx MHz
Optical Specifications Unit Typ. Remarks
Wavelength nm 515nm optional
Spectrum width nm  0.3 optional
Pulse width fs 10/20/50/100 optional
Output power mW 1-200 Optional
Power stability -

1%


Repeat frequency rate MHz

15-100

Optional
Single pulse energy nJ >0.5
Mode-locking stabilization time s <20
Polarization - linear polarization
Output mode - Free sight
Warm-up time min <1


Electrical and environmental Specifications
Package type desk module Remarks
control mode  push-button  push-button
Synchronous Electrical Signal Interface SMA SMA
Power supply
100~240VAC, <30W
5VDC, <20W

Size 330(W)〜400(D)〜112(H) 200(W)〜120(D)〜55(H)
Operating temperature

5 ~ 45<C


Working humidity
0~70%

Warranty time

One year

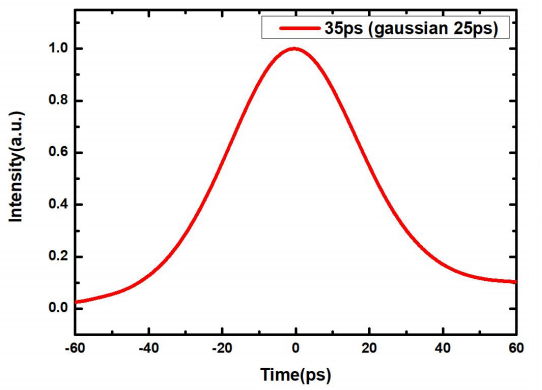

Pulse AC Profile

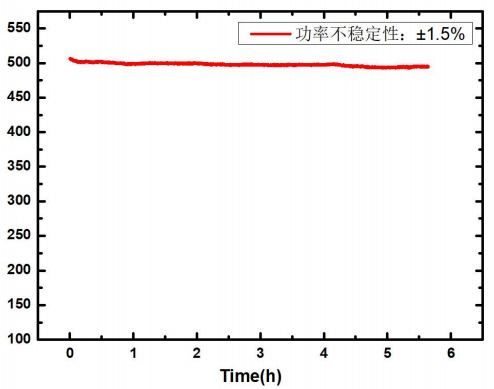

Power stability

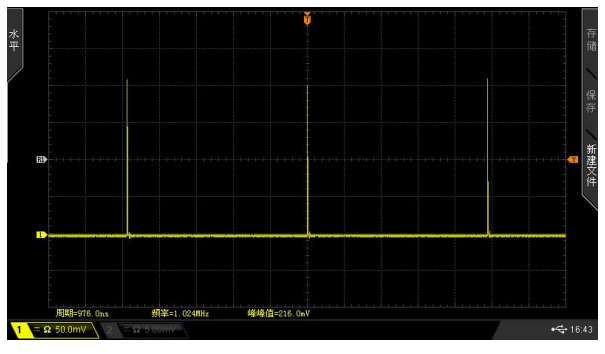

Pulse sequence
Order information/model
Model Wavelength Pulse width(fs) Output power(mW) Repeat frequency rate(MHz) Out Fiber Package
SL-PSPL- 515nm 10/20/50/100
10/50/200
15/50/100

FS=Free sight

B=desk type

M=module
