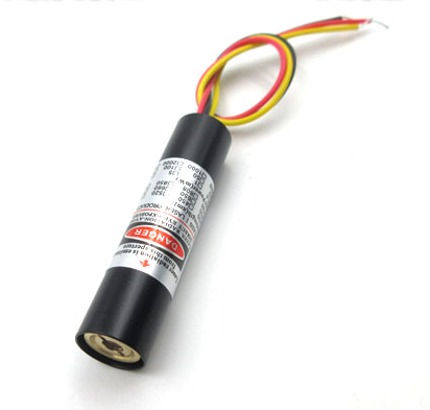

520nm 1-120mw Compact Laser Module With TTL Modulation

Specifications
Model	SL-520nm-LM-T-xxxmW
Output Power @ 25 ℃	1-120mW
Wavelength	520nm
Beam Mode	Dot
Operation Mode	CW
Focus	Adjustable
Power stability (rms, over 4 hours)	<5%(over 2 hours)
Warm-up time (minutes)	<1
M2 factor	<1.2
Beam Divergence (1/e², Full Angle)	< 1.5mrad
Beam diameter at the aperture (mm)	<2
Operating temperature	10℃～35℃
Dimensions	Dia.12×50mm (Can be designed to other size according to customer's requirement)
Input Voltage	3-5VDC
Modulation	TTL
Modulation Frequency	0Hz-30KHz
Wires	Red and Black or Cable
Warranty time	One year
