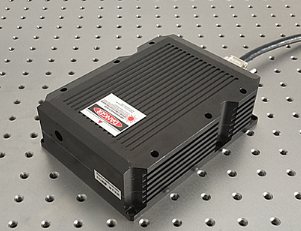

520nm 2000-15000mw Laser System

Specifications

Model

SL-520nm-xxxxT

Output Power @ 25 ≧

2000-14000mW

(2500,3000, 3500, 5000, 7000, 8000, 10000 and 14000mW optional)

Wavelength

520nm

Operation Mode

CW
Transverse mode Multimode
Power stability (rms, over 4 hours) <5%
Warm-up time (minutes)
<5
Beam Divergence (1/e2, Full Angle)
< 3.0mrad
Beam diameter at the aperture (mm)
<7.0
Cooling
TEC
Operating temperature
10≧゛35≧
Modulation
TTL,0-30kHz
Dimensions of Laser Head
166 x 120 x 52mm
Input Voltage
85-265VAC
Expected Operating Lifetime
>10000 hours
Warranty Time
1 year
　 　
　 　
