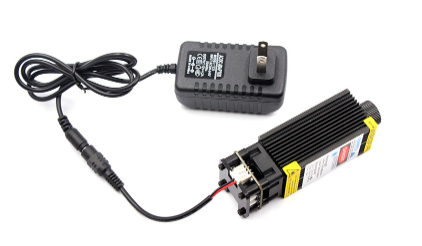

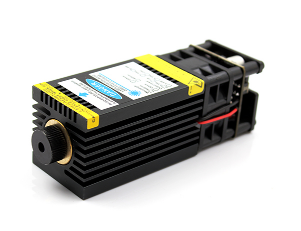

520nm 50-1000mw Laser Module with 12VDC Power Supply

Specifications

Model

SL-520nm-LM-xxxxT

Output Power @ 25 ≧

50-1000mW

(50, 100, 150,300, 500  and 1000mW optional)

Wavelength

520nm

Operation Mode

CW
Warm-up time (minutes)
<5
Focus
Adjustable
Modulation
TTL
Wires
5521DC Connector
Beam diameter at the aperture (mm)
<5.0
Operating temperature
10≧゛35≧
Dimensions of Laser Head(mm)
75 x 34 x 34
Input Voltage
12VDC
PCB Driver
ACC
Warranty Time
1 year
