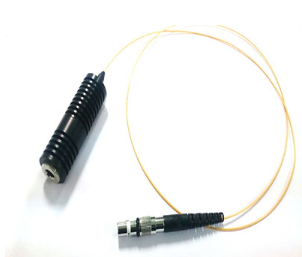

520nm Fiber Coupling Laser Module

　

Specifications

Model

SL-520nm-LM-xxmW-F

Output Power from fiber

5-2000mW

Wavelength

520nm

Beam Mode

Fiber Coupling
Operation Mode CW

Spectral width (FWHM)

<3nm

Fiber Model

 Single-mode or Multi-mode

Fiber core diameter

S-9μm or M-62.5μm
Fiber Length 1-2M
Fiber Connector Mode SMA905 or FC
Input Voltage 5＼0.5V
Operating Temperature
10-25≧
Lifetime >10000hours
Applications Biochemical Analysis ,Scientific Research ,Printing
