532nm Picosecond Pulse Fiber Laser



　
Our Y-fiber series ultra fast laser use high-performance rare earth fiber as working medium combined with full-maintenance mode-locking technology and frequency doubling technology to achieve 515/532nm band picosecond pulse laser stable output. Full self-starting and long-term stabilization,

It has the characteristics of narrow laser pulse and high peak optical power. This light source can be used for high power laser, supercontinuum spectrum, laser ranging, etc

*accept customized parameters such as pulse width, power, repetition rate, etc.

Characteristics

 Apply
Picosecond fluorescence lifetime microscopy imaging
Self-starting and Maintenance-free OPA pump laser
Stable Power Seed laser
Polarization maintaining 　
Model: SL-PSPL-515nm-xx fs-xxx mW-xx MHz
Optical Specifications Unit Typ. Remarks
Wavelength nm 532nm optional
Spectrum width nm  0.3 optional
Pulse width fs 10/20/50/100 optional
Output power mW 1-200 Optional
Power stability -

＋ 1%

 　
Repeat frequency rate MHz

15-100

 Optional
Single pulse energy nJ >0.5 　
Mode-locking stabilization time s <20 　
Polarization - linear polarization 　
Output mode - Free sight 　
Warm-up time min <1 　
　 　 　 　
　 　 　 　
Electrical and environmental Specifications
Package type desk module Remarks
control mode  push-button  push-button 　
Synchronous Electrical Signal Interface SMA SMA 　
Power supply
100~240VAC, <30W
5VDC, <20W
 　
Size 330(W)〜400(D)〜112(H) 200(W)〜120(D)〜55(H) 　
Operating temperature

5 ~ 45＜C

 　
Working humidity
0~70%
 　
Warranty time

One year

 　
　 　 　
Pulse AC Profile
Power stability
Pulse sequence

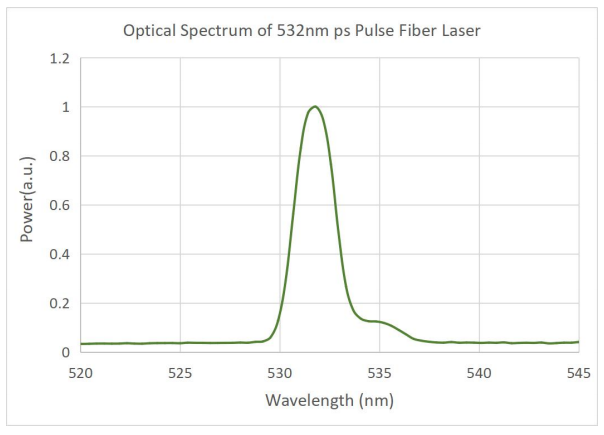

Spectrum
Order information/model
Model Wavelength Pulse width(fs) Output power(mW) Repeat frequency rate(MHz) Out Fiber Package
SL-PSPL- 532nm 10/20/50/100
10/50/200
15/50/100

FS=Free sight

 B=desk type

M=module
