635nm Red Laser Line Module With Powell Lens

Specifications
Model	SL-635nm-LM-L-xx mW-P
Wavelength( nm )	635nm
Output power( mw )	1-20mW
Beam Mode	Line
Operation Mode	CW
Width of line	<1.5mm at 1M or <2.0mm at 5M
Fan angle	5°,10°,15°,30°,45°,60°,75°,90°,110°

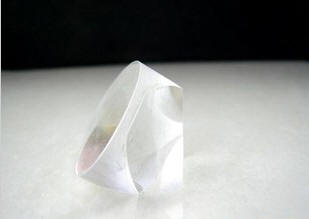

Line lens	Powell Lens
Operating Current	<180mA
Operating Voltage	3-5VDC
Dimensions	Φ16 x 60mm,￠16×80mm,￠20x100mm
Operating temperature	-10℃～+40℃
Storage temperature	－20℃～+60℃
Expected operating lifetime	> 5000 hours
Warranty time	One year
Beam Shape

Choice Other Parts

DC Adapter	Mounting Brackets
