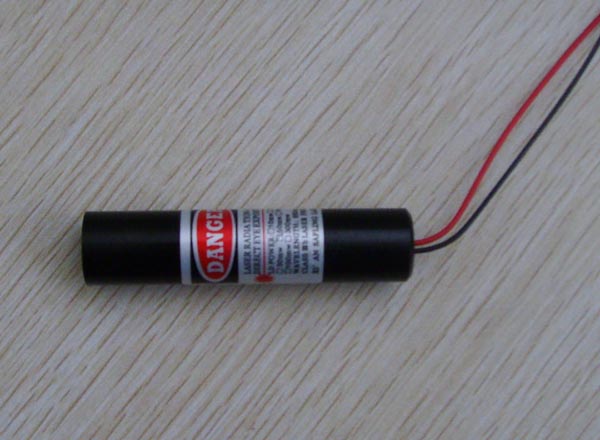

635nm Red Laser With 12VDC Power Supply

Specifications
Model SL-635nm-XXXT-12V
Wavelength 635nm
Output power

1-200mW
Beam Mode
 TE00
Operation Mode CW
Warm-up time <5minutes
Power Stability <5% @ 2hours
Beam Divergence < 5mrad
Beam Diameter < 5mm
M2 factor <20
Polarization ratio >50:1
Operating temperature 10-35 ≧
Dimensions of Laser Head 33 x 33 x 50mm

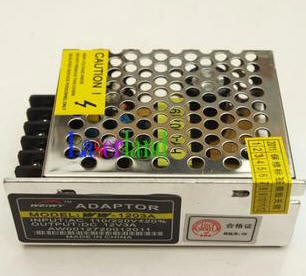

Power Supply 12VDC
Dimensions of Power Supply 65 x 45 x 36mm
Expected operating lifetime > 10000 hours
Modulation TTL / Analog Modulation
Warranty Time One year
