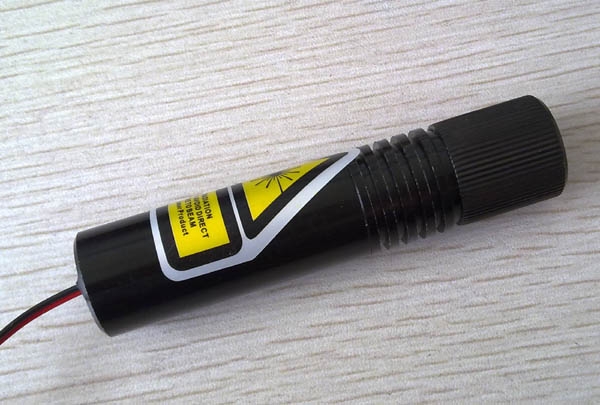

635nm 1-30mw Red Line
Laser Module with DC
Adapter
|
|
|
 |
 |
 |
|
¡¡ |
¡¡ |
|
Specifications
|
|
Model
|
SL-635nm-LM-L-xx mW(Line)
|
|
Wavelength
|
635nm(red)
|
|
Output power
|
1-30mW |
|
Beam Mode
|
straight line |
|
Operation Mode |
CW |
|
Width of line |
<2.0mm at 1M or <2.5mm at 5M |
|
Fan angle
|
5-110¡ã
|
|
Line lens |
PMMA or Glass or Powell lens |
|
Operating current |
<150mA |
|
Operating Voltage
|
3-5VDC |
|
Operating temperature
|
-10¡æ¡«40¡æ
|
|
Storage
temperature
|
-30¡æ¡«60¡æ
|
|

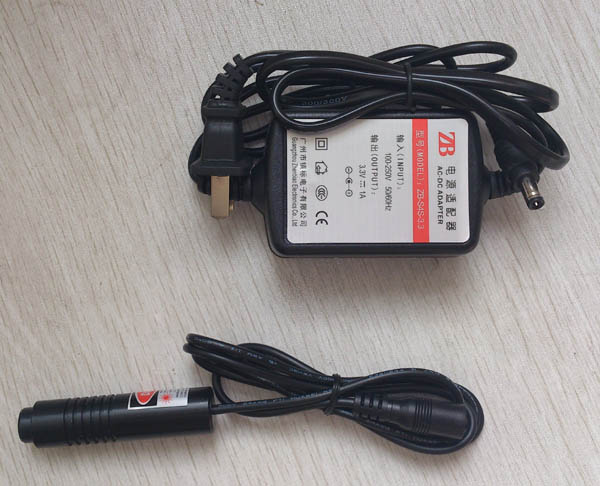

Included |
DC Adapter |
|
Expected operating
lifetime
|
> 5000 hours
|
|
Dimensions |
¡é10¡Á30mm,¡é12¡Á50mm,¡é16x70mm |
|
Warranty time |
One year |
|
Choice

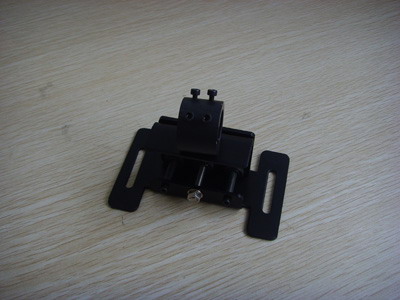

Mounting Brackets
|
 |
