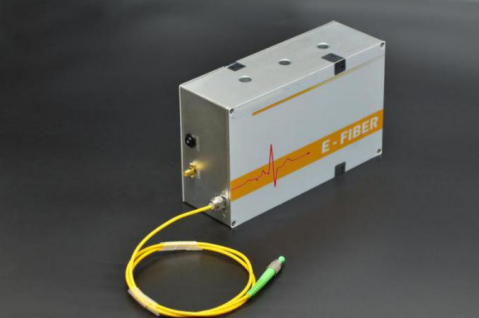

780nm Femtosecond Pulse Fiber Laser



　
Our E-fiber series ultra fast laser integrates the latest femtosecond laser technology and nd optical frequency doubling technology, achieve 780nm femtosecond pulse laser stable output,A single-click boot, long-term stable operation and maintenance-free, with laser pulse extremely narrow, pulse peak power and other characteristics, widely used in optical frequency comb, supercontinuum spectrum, THz and other fields.

*accept customized parameters such as pulse width, power, repetition rate, etc.

Characteristics

 Apply
 Femtosecond pulse width Multiphoton excitation imaging
Self-starting and Maintenance-free two-photon absorption
Stable Power Ultrafast laser phenomenon
Polarization maintaining 　
Model: SL-FSPL-780nm-xx fs-xxx mW-xx MHz
Optical Specifications Unit Typ. Remarks
Wavelength nm 780＼10nm 　
Spectrum width nm         20 　
Pulse width fs <100 optional
Output power mW >30 Optional
Power stability -

＋ 1%

 　
Repeat frequency rate MHz

80

 Optional
Repeat frequency rate stability Hz <100 　
Single pulse energy nJ >0.4 　
Polarization - linear polarization 　
Output Mode - Space light 　
Warm-up time min <1 　
　
Electrical and environmental Specifications
Package type desk module Remarks
control mode  push-button  push-button 　
Synchronous Electrical Signal Interface SMA SMA 　
Power supply
100~240VAC, <30W
5VDC, <20W
 　
Size 260(W)〜280(D)〜120(H) 220(W)〜120(D)〜55(H) 　
Operating temperature

5 ~ 45＜C

 　
Working humidity
0~70%
 　
Warranty time

One year

 　
　 　 　
Model Wavelength Pulse width(fs) Output power(mW) Repeat frequency rate(MHz) Out Fiber Package
SL-FSPL- 780nm 50/100/200/500
10/50/100
80/100
 FS=Free sight B=desk type

M=module
