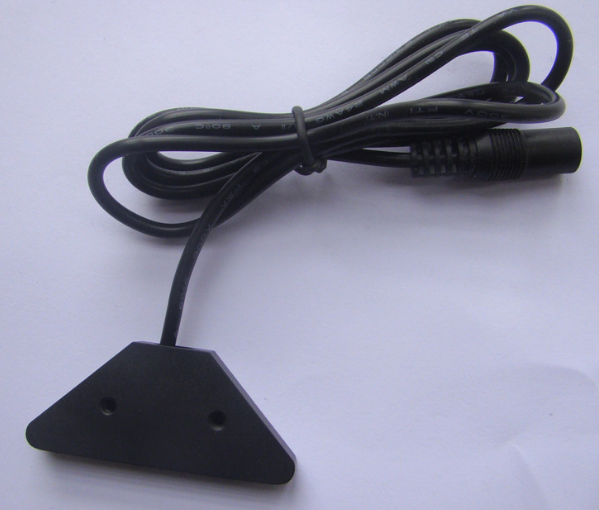

850nm High Power Multi-touch
Interactive Projection Infrared Laser Module
|
|
|
|
Specifications
|
|
Model
|
SL-850nm-LM-MIP-xxx mW
|
|
Output
Power @ 25 ≧
|
100-200mW
|
|
Wavelength
|
850＼5nm
|
|
Beam
Mode
|
Line
|
|
Operation
Mode |
CW |
|
Working Distance |
Optional |
|
Power stability
(rms, over 4 hours)
|
<5%(over 2 hours)
|
|
Warm-up time
(minutes)
|
<1
|
|
M2 factor
|
<1.2
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter
at the aperture (mm)
|
<2
|
|
Operating
temperature
|
10≧゛35≧
|
|
Dimensions(mm)
|
60 x 26.5 x 10 |
|
Input Voltage
|
3-5VDC
|
|
Fan Angle |
30＜,60＜,90＜,110＜optional, |
|
Lens |
Plastic or Glass |
|
Beam Width |
＋3mm @ 1m |
|
Wires |
|
|
Warranty time |
One year
|
|
|
|
|

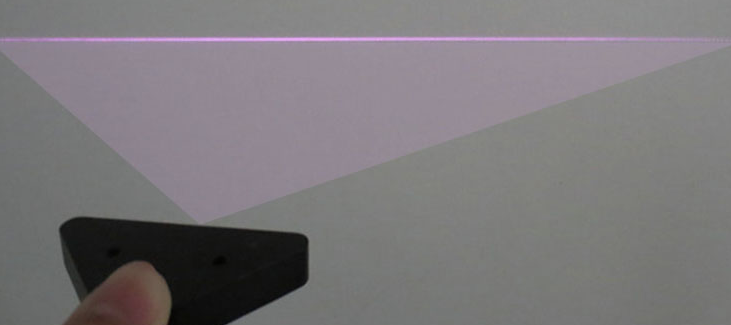

Infrared camera take the
picture |
|
 |
