1060nm ASE Broadband Fiber Laser

The 1060nm wideband light source is based on a ytterbium-doped fiber and a high-performance pump laser. the ASE spectrum covers 1030-1060 nm, and the light source structure is optimized high output power and good flatness. can be used for fiber device testing, FBG grating fabrication, etc.
Characteristics		Apply
Spectrum flatness		Fiber sensing
High power stability		Medical imaging
Output power adjustable		Optical device Testing
Model: SL-ASE-1060nm-xx mW
Specifications	Unit	Typ.	Remarks
Wavelength	nm	1030 - 1080	50nm @ 10dB
Output power	mW	10/20/30
stability(within 15minutes)	dB	≤ 0.02
stability(within 8hours)	dB	≤ 0.05
Fiber mode	-	Single mode Hi1060
Degree of polarization	dB	≤ 0.2
Spectrum flatness	dB	10(Type)
Output end isolation	dB	>35
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
Fiber connector	FC/APC or customized
Operating voltage	DC5V or 100-240VAC
Communication interface	DB9 Female
Size	260(W)×280(D)×120(H) 125(W)×150(D)×20(H)		Desk Type Module Type
Warranty time	One year

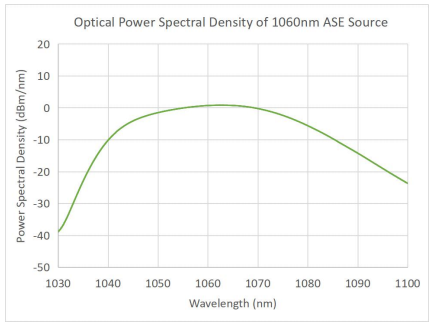

Spectral
