2000nm ASE Broadband Fiber Laser

The 2000nm ASE broadband light source is based on aldebaranium fiber laser technology and has high output power. The spectral coverage is 1850~2000 nm, which is suitable for laser biological and spectral measurement applications. Can provide communication interface and host computer software, easy to monitor the state of light source.
Characteristics		Apply
Spectrum flatness		Fiber sensing
High power stability		Medical imaging
Middle-infrared band		Optical device Testing
Model: SL-ASE-2000nm-10mW
Specifications	Unit	Typ.	Remarks
Wavelength	nm	1850 - 2000
Output power	mW	10
stability(within 15minutes)	dB	≤ 0.02
stability(within 8hours)	dB	≤ 0.05
Fiber mode	-	SM1950 or SMF28e
Degree of polarization	dB	≤ 0.2
Output end isolation	dB	>35
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
Fiber connector	FC/APC or customized
Operating voltage	DC5V or 100-240VAC
Communication interface	DB9 Female
Size	260(W)×280(D)×120(H)		Desk Type
Warranty time	One year

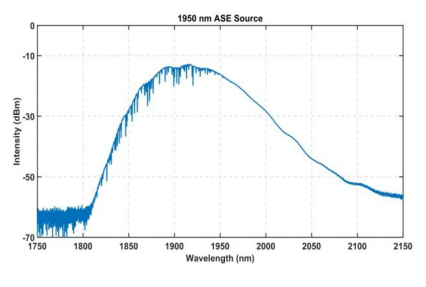

Spectral
