C-Band ASE Broadband Fiber Laser

The fiber ASE broadband light source adopts Erbium doped fiber optical spectral flat technology , and also has high output power . Its working wavelength covers the C-band , which is suitable for fiber sensing and other applications .Communication interface and upper computer software can be provided to facilitate the monitoring of light source status .

Characteristics

 Apply
Spectrum  flatness Fiber sensing
High power stability Medical imaging
Output power adjustable Optical device Testing
Model: SL-ASE-C-xxx mW
Specifications Unit Typ. Remarks
Wavelength nm 1528 - 1563  C-Band
Output power mW 10/20/50/100 　
stability(within 15minutes) dB

＋ 0.02

 　
stability(within 8hours) dB

＋ 0.05

 　
Fiber mode - Single mode SMF-28e 　
Output power adjustable - 10-100%

(the spectrum  flatness is fixed when adjusting)

 Optional
Spectrum  flatness dB 1.5(Type),  2(Max) 　
Output end isolation dB >35 　
Operating temperature ≧ -5 ~ +55 　
Storage  temperature ≧ -40 ~ +85 　
Fiber connector FC/APC or  customized 　
Operating voltage DC5V or 100-240VAC 　
Communication interface

DB9 Female

 　
Size

260(W)〜280(D)〜120(H)

125(W)〜150(D)〜20(H)

Desk Type

Module Type
Warranty time One year 　

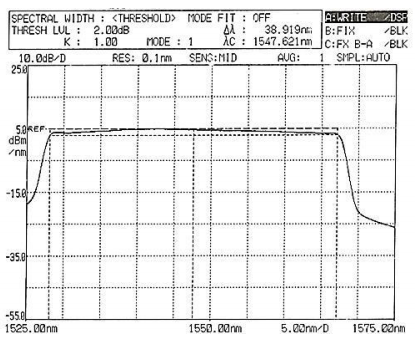

Spectral 　 　
