L-Band ASE Broadband Fiber Laser

The fiber ASE broadband light source adopts Erbium doped fiber optical spectral flat technology , and also has high output power . Its working wavelength covers the L-band , which is suitable for fiber sensing and other applications .Communication interface and upper computer software can be provided to facilitate the monitoring of light source status .

Characteristics

Apply
Spectrum  flatness Fiber sensing
High power stability Medical imaging
Output power adjustable Optical device Testing
Model: SL-ASE-L-xxx mW
Specifications Unit Typ. Remarks
Wavelength nm 1567 - 1603  C-Band
Output power mW 10/20/50/100
stability(within 15minutes) dB

+ 0.02


stability(within 8hours) dB

+ 0.05


Fiber mode - Single mode SMF-28e
Output power adjustable - 10-100%

(the spectrum  flatness is fixed when adjusting)

Optional
Spectrum  flatness dB 2(Type),  3(Max)
Output end isolation dB >35
Operating temperature -5 ~ +55
Storage  temperature -40 ~ +85
Fiber connector FC/APC or  customized
Operating voltage DC5V or 100-240VAC
Communication interface

DB9 Female


Size

260(W)〜280(D)〜120(H)

125(W)〜150(D)〜20(H)

Desk Type

Module Type

Warranty time One year

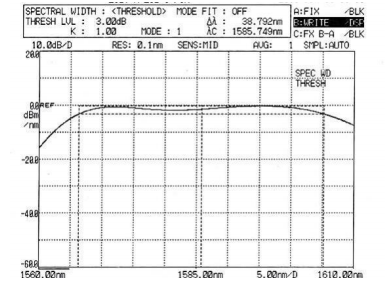

Spectral
