Super-broadband SLD Broadband Fiber Laser

The super broadband SLD light source uses multiple semiconductor super-radiation diode spectrum splicing technology to output the broadband spectrum covering 1250-1650 nm band and has high optical power density at the same time. suitable for passive device testing, fiber sensing and other applications.

Characteristics

 Apply
Spectrum  flatness Fiber sensing
Low spectral ripple Medical imaging
Low spectral ripple Optical device Testing
Model: SL-SB-SLD-xxxx nm-10mW
Specifications Unit Typ. Remarks
Wavelength nm 1250-1650 　
Output power mW >10 　
stability(within 15minutes) dB

＋ 0.02

 　
stability(within 8hours) dB

＋ 0.05

 　
Fiber mode - Single mode SMF-28e 　
Spectral power density dBm/nm − -25 　
Spectral ripple dB <0.2 　
Operating temperature ≧ -5 ~ +55 　
Storage  temperature ≧ -40 ~ +85 　
Fiber connector FC/APC or  customized 　
Operating voltage DC5V or 100-240VAC 　
Communication interface DB9 Female 　
Size

260(W)〜280(D)〜120(H)

125(W)〜150(D)〜20(H)

Desk Type

Module Type　
Warranty time

One year

 　

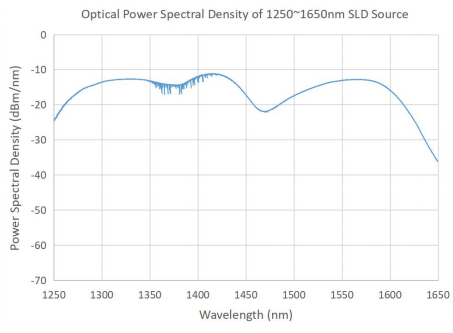

Spectral 　 　
