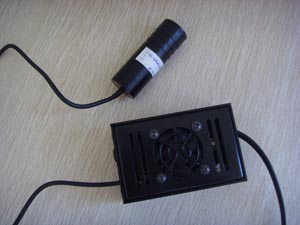

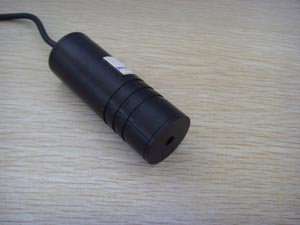

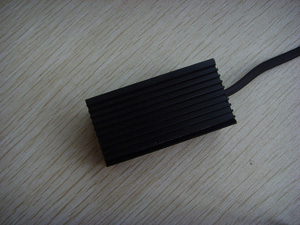

DPSS  532nm Green Laser 1-50mw

Specifications
Model SL-532nm-XXT
Wavelength 532nm(green)
Output power 15mw,30mw and 50mw
Operating Mode CW
Beam Mode TEM00
Power Stability <10% @ 2hours
Beam Divergence <2mard
Beam Diameter <1.5mm
Beam Quality(M2 factor) <1.2
Beam Roundness 95%
Laser Size (mm) 30〜30〜60 or Dia25mm
Operating Temperature 10≧ - 35≧
Power Supply 85-260VAC or 5VDC
Expected operating lifetime > 10000 hours
Modulation TTL / Analog Modulation
Warranty Time One year
