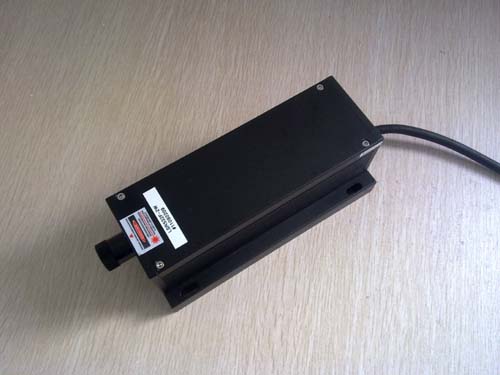

DPSS 532nm Green Laser Without TEC 500-800mw

Specifications
Model SL-532nm-XXXT
Wavelength 532nm(green)
Output power 500-800mw
Operating Mode CW
Beam Mode TEM00
Power stability (rms, over 2 hours) <5%
Beam Divergence < 2 mrad
Beam Diameter < 2.0mm
Beam Quality(M2 factor) <1.2
Beam Roundness >90%
Polarization ratio >100:1
Point stability after warm-up (mrad) < 0.05
Expected operating lifetime > 10000 hours
Laser Size 144 x 78 x 62mm
Power Supply 85-260VAC or 5VDC
Modulation TTL or Analog Modulation
Warranty Time 1year
