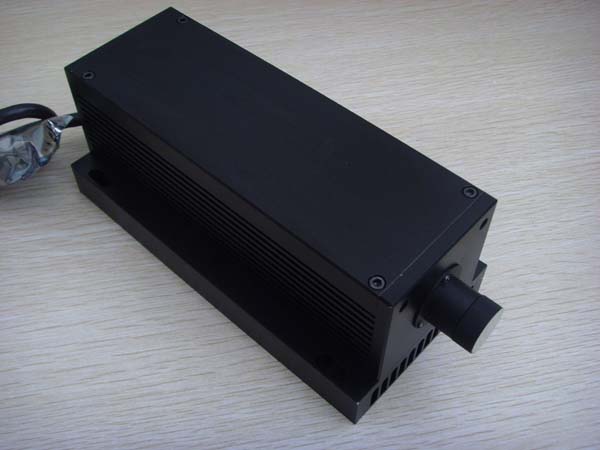

355nm CW 1-20mW UV Laser
|
 |
 |
|
Specifications
|
|
|
|
|
Model |
SL-355nm-C-XXT |
|
Wavelength |
355nm |
|
Output power |
1-20mw |
|
Operating Mode |
CW |
|
Transverse Mode |
TEM00 |
|
Power Stability (Over 4hours) |
<5% |
|
Warm - Up time (minutes) |
<15 |
|
M² Factor |
<1.5 |
|
Beam Divergence (mrad) |
<1.5 |
|
Beam Diameter (mm) |
-2.0 |
|
Polarization ratio |
>50:1 |
|
Point stability after warm-up (mrad) |
<0.05 |
|
Operating Temperature (ºC) |
10-35 |
|
Laser Head
Dimensions (mm)
|
212(L)x88(W)x75(H) |
|
Power Supply Dimensions (mm) |
238(L)x146(W)x102(H) |
|
Expected Lifetime (hours)
|
>10000 |
|
Warranty time |
one year |
|
 |
