DPSS 355nm Passively Q-switched 30-60uJ/100-500mW
Laser |
|
Specifications
|
|
Model |
SL-355nm-XXXX |
|
Wavelength |
355nm |
|
Output power |
100-1000mw |
|
Operating Mode |
Frequency conversion of Q-switched
pulsed laser |
|
Single Pulse Energy (¦ĚJ) |
30-60 |
|
Pulse Duration (ns) |
-7 |
|
Peak Power (kW) |
-10 |
|
Transverse Mode |
Near TEM00 |
|
Average power (mW) |
Average power (mW) = Single pulse energy (¦ĚJ) *
Rep. rate (kHz) |
|
Power Stability (Over 4hours) |
<5% |
|
Rep. rate (kHz) |
Undefined rep. rate among 5-15kHz and unstable laser
pulse emitting. Suitable for the applications only needing high peak
power pulses. |
|
Beam
parameters |
Elliptical (4:1) |
|
Beam diameter at the aperture (mm) |
-2mm |
|
Cooling system |
Cooled by TEC and air, no
water needed |
|
Polarization ratio |
>100:1 |
|
Point stability after warm-up (mrad) |
<0.05 |
|
Operating Temperature (ºC) |
10-35 |
|
Warm - Up time (minutes) |
<15 |
|
Laser Head
Dimensions (mm)
|
333(L)x140(W)x125(H) |
|

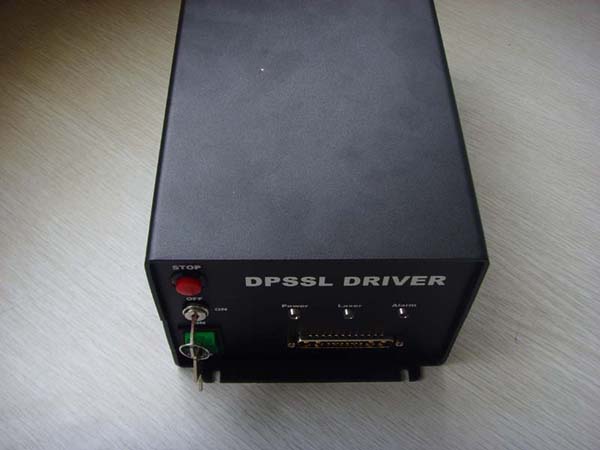

Power Supply Dimensions (mm) |
300(L)x162(W)x134(H) |
|
Expected Lifetime (hours)
|
>10000Hours |
|
Warranty time |
one year |
|
 |
