Lowest output

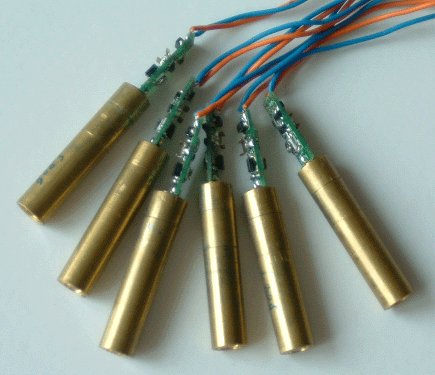

power 532nm <1mW Green Laser Module
|
 |
|
Specifications
|
|
Model
|
SL-532nm-GLM-013(Dotting)
|
|
Wavelength
|
532nm(green)
|
|
Output power
|
<1mW(0.2-0.8mw)
|
|
Operation Mode
|
CW,TEM00
Fixed Focus, Dot Shape Facula
|
|
Working
Current
|
<280mA
|
|
Operating
Voltage
|
DC=2.7V～3.2V
|
|
Beam of Light Emanative Angle
|
2.4mrad
|
|
Expected operating
lifetime
|
> 5000 hours
|
|
Laser Size
|
φ12
x 45mm
|
|
Facula Diameter
|
φ1.0mm at minimum
|
