1310nm Single Frequency and Single Mode Fiber Coupled Laser

The 1310nm single wavelength laser light source uses DFB semiconductor laser chip, single mode fiber output, professional design drive circuit and TEC control to ensure laser safety and stability, can provide desktop or modular packaging.
Characteristics		Apply
Narrower Spectral Width		Fiber Sensing
Stable Power and spectral		Fiber laser
Single mode or PM output		Optical test
Model: SL-FL-1310nm-xx mW
Specifications	Unit	Typ.	Remarks
Wavelength	nm	1310+/- 0.5
Output power	mW	5/20/30
stability(within 15minutes)	dB	≤ 0.02
stability(within 8hours)	mW	≤ 0.05
Fiber mode	-	Single mode SMF-28e or PM1550
Spectral Width	MHz	<3
Side band rejection ratio	dB	>50
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
Fiber connector	FC/APC or customized
Fiber mode	Single mode fiber SMF-28e
Operating voltage	DC5V or 100-240VAC
Communication interface	DB9 Female
Size	260(W)×280(D)×120(H) 125(W)×150(D)×20(H)		Desk Type Module Type
Warranty time	One year

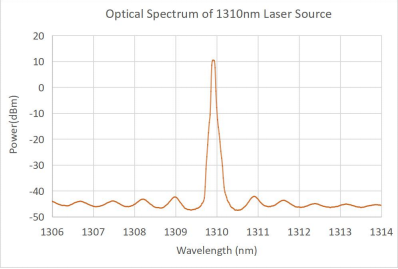

Spectral Width
