1550nm Single Frequency and Single Mode Fiber Coupled Laser(Low Power)

The 1550nm band single wavelength laser (low power) uses DBF semiconductor laser chip, single mode fiber output, professional design drive circuit and TEC control to ensure the laser safe and stable operation, can provide desktop or modular packaging.
Characteristics		Apply
High power output		Fiber sensing
Stable Power and spectral		Fiber laser
-		Non linear optical research
Model: SL-FL-1550nm-xxx mW
Specifications	Unit	Typ.	Remarks
Wavelength	nm	1550+/- 0.5	1540-1565nm Optional
Output power	mW	10/20/50/100/200
Spectral Width	MHz	3	1MHz Optional
Side band rejection ratio	dB	>50
stability(within 15minutes)	dB	≤ 0.02
stability(within 8hours)	mW	≤ 0.05
Fiber mode	-	Single mode SMF-28e or PM1550
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
Fiber connector	FC/APC or customized
Operating voltage	DC5V or 100-240VAC
Communication interface	DB9 Female
Size	260(W)×280(D)×120(H) 125(W)×150(D)×20(H)		Desk Type Module Type
Warranty time	One year

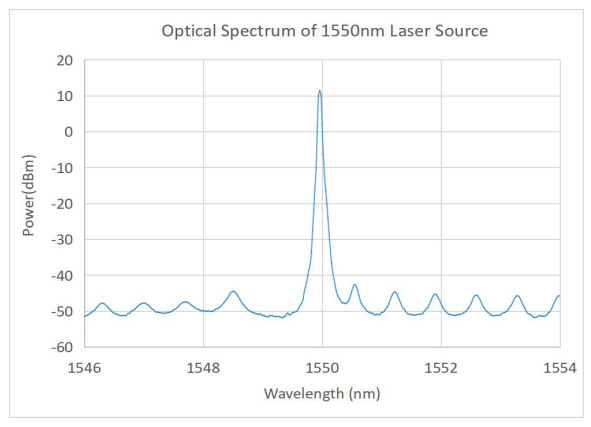

Spectral Width
