1550nm Single Frequency and Single Mode Fiber Coupled Laser (High Power)

The 1550nm single wavelength laser light source (high power) adopts the DBF semiconductor laser chip , combined with the high power gain optical circuit module to achieve the single - mode optical fiber high power output , the professionally designed drive circuit and TEC control to ensure the laser safety and stable work , which can provide desktop or modular package.

Characteristics

Apply
High power output Fiber sensing
Spectrum optional Fiber laser
Single mode fiber or PM output Laser ladar
Model: SL-FL-1550nm-xx W
Specifications Unit Typ. Remarks
Wavelength nm 1550+/- 0.5 1540-1565nm Optional
Output power W 1/2/5/10/15 Optional
dBm 27/30/33/37/40/43
Spectral Width MHz <0.1 1MHz Optional
Side band  rejection ratio dB >50
stability(within 15minutes) dB

+ 0.02


stability(within 8hours) mW

+ 0.05


Fiber mode - Single mode SMF-28e or PM1550
Operating temperature -5 ~ +55
Storage  temperature -40 ~ +85
Fiber connector FC/APC or  customized
Operating voltage

DC5V or 100-240VAC


Communication interface

DB9 Female


Size 260(W)〜280(D)〜120(H)

125(W)〜150(D)〜20(H)

Desk Type

Module Type

Warranty time One year

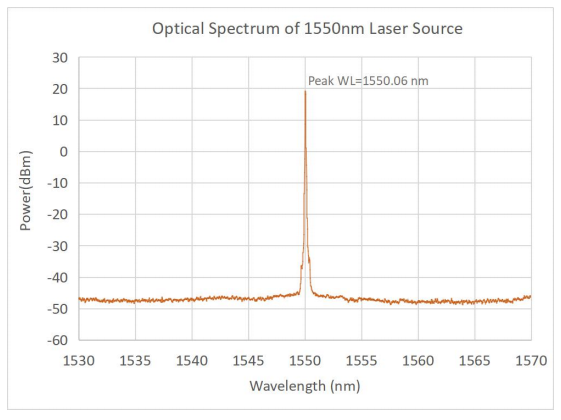

Spectral Width
