1570nm Single Frequency and Single Mode Fiber Coupled Laser

The 1570nm single wavelength laser uses high performance butterfly semiconductor laser chip, the professional design drive circuit and the TEC control guarantees the laser safe work, the output power and the spectrum stability. Suitable as pump laser source of doped fiber laser or fiber amplifier, can provide desktop or modular packaging.
Characteristics		Apply
High power output		Fiber Laser
Single mode output		Fiber Sensing
Spectrum optional		-
Model: SL-FL-1570nm-xx dBm
Specifications	Unit	Typ.	Remarks
Wavelength	nm	1570+/- 1	1565nm Optional
Output power	dBm	10/20/30/33/37	Optional
stability(within 15minutes)	dB	≤ 0.02
stability(within 8hours)	mW	≤ 0.05
Fiber mode	-	Single mode SMF-28e
Spectral Width	MHz	<0.1
Side band rejection ratio	dB	>50
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
Fiber connector	FC/APC or customized
Operating voltage	DC5V or 100-240VAC
Communication interface	DB9 Female
Size	260(W)×320(D)×120(H) 125(W)×150(D)×20(H)		Desk Type Module Type
Warranty time	One year

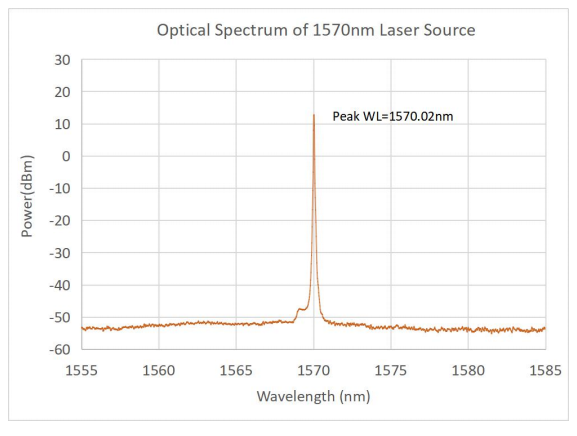

Spectral Width
