C-Band Wavelength Tunable Fiber Laser

The wavelength tuning range of the light source covers the C-band and realizes continuous laser output of up to 89 wavelengths (ITU-T standard wavelength, wavelength interval of 50 GHz). The adjustable filter and high gain chip are integrated, which have the characteristics of high output optical power, narrow line width and high wavelength accuracy. Equipped with a special drive control circuit, high-definition color LCD screen, but also optional host computer software, users can easily tune the wavelength accurately. can be used in DWDM system research and development, fiber laser, fiber link, optical device testing and other fields.

Characteristics

Apply
89 x Wavelengths DWDM system
High power stability Fiber link
High edge - mode suppression ratio Optical device Testing
Model: SL-TFL-C-xx mW
Specifications Unit Typ. Remarks
Wavelength nm 1528.77 - 1563.86  ITU standards C61-C17
Output power mW 10/20
stability(within 15minutes) dB

+ 0.02


stability(within 8hours) dB

+ 0.05


Fiber mode - Single mode SMF-28e or PM1550
frequency tuning range THz 191.7 - 196.1
Side band  rejection ratio dB >50
Channel spacing GHz 50 Equivalent to 0.4nm
Operating temperature -5 ~ +55
Storage  temperature -40 ~ +85
Fiber connector FC/APC or  customized
Operating voltage DC5V or 100-240VAC
Communication interface

DB9 Female


Size

260(W)〜280(D)〜120(H)

125(W)〜150(D)〜20(H)

Desk Type

Module Type

Warranty time One year

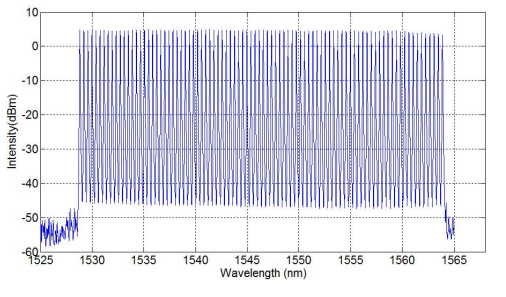

Intensity (dBm)
