1550nm 10mW SM 14-Pin Butterfly Laser Diode
With TCD and PD
|
|
 |
|
Specifications
|
|
Model |
SL-1550nm-SMF-10mW-14P |
|
Parameter |
Symbol |
Value |
Unit |
|
LD Reverse Voltage
|
Vr |
2.0 |
V |
|
PD Operating Current |
If(PD) |
- |
mA |
|
PD Reverse Voltage |
Vr(PD) |
- |
V |
|
Operating Temperature |
Top |
-10~+85 |
＜C |
|
Storage Temperature |
Tstg |
-40~+85 |
＜C |
|
Lead soldering temperature (10
sec.) |
Tis |
260 |
＜C |
|
Features:
1550nm 14-Pin
Butterfly package SM Fiber Without
Isolation Built-in TEC Cooling |
|
Applications:
Test Equipments,
Optical Transmitter of Analog Signal, Optical
Transmitter of Data Signal, Others. |
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧
|
＼3
|
1550nm |
＼5 |
|
Spectral Width (FWHM) |
|
0.2nm |
|
|
Output
Power from fiber
|
- |
10mW
|
- |
|
Fiber Core
|
9um
|
|
Threshold Current (Typ.) Ith
|
- |
5mA
|
15mA |
|
Operating Current |
- |
80mA |
- |
|
Forward Voltage |
- |
1.4V |
- |
|
Thermistor |
- |
10K |
- |
|
TEC Max Current |
- |
- |
1.8A |
|
TEC Max Voltage |
- |
-- |
2.5V |
|
N.A. |
0.12 |
|
Fiber Length |
80cm |
|
Connector Type |
FC/SMA905
|
|
Recommended Case Temperature
|
25＜C |
|
|
|
|
14-Pin Package View |
|
 |
|

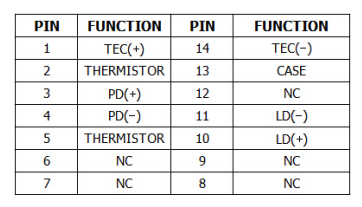

Pin out View |
|
 |
|
Electrically shorten LD module
and store in non-extreme conditions. Suggest using the constant
current power supply. |
